05-07 Ford SD 6in Lift Kit Diesel 4 Link C/O Vertex -

Product Description:

Upgrade your first-generation Ford Super Duty with Rough Country's 4-Link Coilover Conversion Lift Kit. This kit is designed to provide superior ride quality, ride height adjustability, increased dampening, and an impressive look. It features a 4-Link setup that replaces your factory arms with durable, fixed upper arms and adjustable lower control arms. The kit also includes radius arm drop brackets for maintaining proper geometry and caster setting, crucial for maintaining factory handling.

Key Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability

Durable Components:

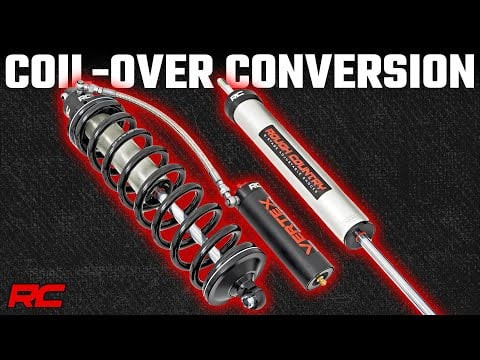

The 6" 4-Link Coilover Conversion Lift Kit from Rough Country features top-mounted reservoir brackets and coil-over mounts made from 1/4-inch steel. The kit replaces the factory independent coil shock and coil set-up with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover. The Vertex Coilovers feature a monotube design with an external reservoir for increased oil capacity and damping sensitivity. The 2.5in piston design offers a 56% greater fluid capacity than the average reservoir shock.

Installation:

The installation requires cutting and drilling and is estimated to take 6-10 hours. The kit can be installed at home efficiently and quickly.

Warranty:

Rough Country's 4-Link Coilover Conversion Lift Kit comes with a limited lifetime replacement warranty against manufacturer defects. This ensures protection from structural and workmanship damage after the date of purchase.

Additional Notes:

This kit does not fit dually models and requires exhaust modification to clear the front driveshaft.

Manufacturer:

The manufacturer of the product is Rough Country, and the model number is 57959 6 Inch Lift Kit.

Components:

Front Components: Vertex Coilovers, Fixed Upper Control Arms, Adjustable Lower Control Arms, Radius Arm Drop Brackets, Sway-Bar Drop Brackets, Track Bar Drop Bracket, Stabilizer Relocation Brackets, Pitman Arm, Brake Line Brackets, Bumpstop Spacers, Hardware. Rear Components: Lift Blocks, Add-A-Leafs, Carrier Bearing Drop Bracket, U-bolts, Hardware.

Tire, Wheel, and Offset Info:

Various combinations of tire, wheel, and offset are compatible with this kit. Please refer to the manufacturer's specifications for detailed information.

Title:

Rough Country 6 Inch Lift Kit - Diesel - 4 Link - C/O Vertex - Ford Super Duty (05-07)
