05-07 Ford SD 6in Lift Kit Diesel 4 Link OVLDS C/O Vertex -

Superior Ride Quality. Upgrade your first-generation Ford Super Duty with Rough Country's 4-Link Coilover Conversion Lift Kit for an impressive ride quality. This kit offers ride height adjustability, increased dampening, and a unique appearance that will make you stand out. The innovative design allows you to replace your factory arms with a 4-Link setup, using Rough Country's durable fixed upper arms and adjustable lower control arms. Radius arm drop brackets maintain proper geometry and caster setting for factory handling.

Durable Components. The Rough Country 6" 4-Link Coilover Conversion Lift Kit features top-mounted reservoir brackets and coil-over mounts made from 1/4-inch steel. By replacing the factory independent coil shock with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover, you'll experience improved oil capacity and damping sensitivity. The Vertex Coilovers feature a monotube design with an external reservoir for optimal damping control. The 2.5in piston design offers 56% greater fluid capacity than average reservoir shocks.

Installation. This kit requires cutting and drilling for installation, with an estimated timeframe of 6-10 hours. The installation can be done at home efficiently and quickly.

Limited Lifetime Replacement Warranty. Rough Country's 4-Link Coilover Conversion Lift Kit is backed by a limited lifetime replacement warranty against manufacturer defects, providing protection from structural and workmanship damage. With Rough Country's Suspension products, you can have peace of mind with the industry-leading warranty.

Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability

Notes:

• Does NOT fit dually models
• Requires exhaust modification to clear the front driveshaft

Install Time:

6 - 10 hours

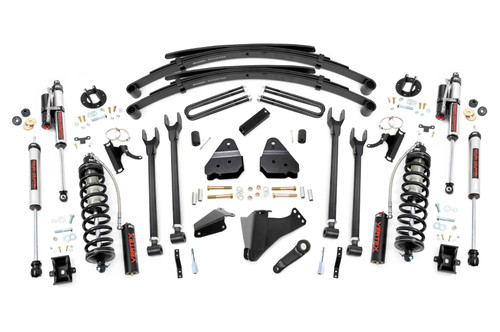

Front Components:

• Vertex Coilovers
• Fixed Upper Control Arms
• Adjustable Lower Control Arms
• Radius Arm Drop Brackets
• Sway-Bar Drop Brackets
• Track Bar Drop Bracket
• Stabilizer Relocation Brackets
• Pitman Arm
• Brake Line Brackets
• Bumpstop Spacers
• Hardware

Rear Components:

• Lift Blocks
• Add-A-Leafs
• Carrier Bearing Drop Bracket
• U-bolts
• Hardware

Tire, Wheel, and Offset Info:

• Various tire sizes with corresponding wheel sizes and offsets

Title:

Rough Country 6 Inch Lift Kit - Diesel - 4 Link - OVLDS - C/O Vertex - Ford Super Duty (05-07)
