05-07 Ford SD 6in Lift Kit Gas 4 Link RR Spring M1 -

Compliment your 05-07 Ford F-250/350's aggressive, good looks with Rough Country's 4-Link Suspension Lift System. Rough Country's 6-inch Lift Kit was engineered to retain the F-250/350's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 4-Link Suspension Lift System features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.

This all-inclusive kit also features an adjustable lower control arms at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - prefect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.

This innovative kit design features a 100% bolt-on installation process that is lightning fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's Rough Country's 4-Link Suspension Lift System is backed by our Lifetime Replacement Warranty.

Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Notes:

• Does NOT fit diesel engine models.
• Does NOT fit dually models.

Install Time: 6 - 8 hours

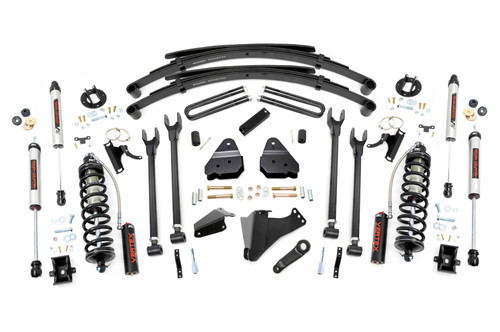

Front Components:

• Lifted coil springs
• Fixed upper control arms
• Adjustable lower control arms
• Radius arm drop brackets
• Sway-bar link extensions
• Track bar drop bracket
• Stabilizer relocation brackets
• Pitman arm
• Brake line brackets
• Bumpstop spacers
• Hardware

Install Time: 6 - 8 hours

Rear Components:

• Lifted leaf springs
• Carrier bearing drop bracket
• U-bolts
• Hardware

Tire, Wheel, and Offset Info:

• 37x13.50R17:17x9:8x170:-12:-
• 37x13.50R17:17x9:8x170:+0:-
• 37x13.50R17:17x9:8x170:+1:-
• 37x13.50R18:18x9:8x170:-12:-
• 37x13.50R18:18x9:8x170:+0:-
• 37x13.50R18:18x9:8x170:+1:-
• 37x13.50R20:20x9:8x170:-12:-
• 37x13.50R20:20x9:8x170:+0:-
• 37x13.50R20:20x9:8x170:+1:-
• 37x12.50R20:20x10:8x170:-25:-
• 37x12.50R20:20x10:8x170:-24:-
• 37x12.50R20:20x10:8x170:-19:-
• 37x12.50R20:20x10:8x170:-18:-
• 37x12.50R20:20x12:8x170:-44:Trimming Required
• 37x12.50R22:22x10:8x170:-25:-
• 37x12.50R22:22x10:8x170:-24:-
• 37x12.50R22:22x10:8x170:-19:-
• 37x12.50R22:22x10:8x170:-18:-
• 37x12.50R22:22x12:8x170:-44:Trimming Required

Title: Rough Country 6 Inch Lift Kit - Gas - 4 Link - RR Spring - M1 - Ford Super Duty (05-07)
