05-07 Ford SD 6in Lift Kit Gas Radius Arm C/O Vertex - 53759

Superior Ride Quality. Take your first-generation Ford Super Duty to new heights with Rough Country's 6-inch Radius Arm Coilover Conversion Suspension Lift! This all-inclusive kit comes with everything you need for a total transformation of your truck. Run up to 37in tires while preserving the smooth, factory ride quality with this impressive upgrade.

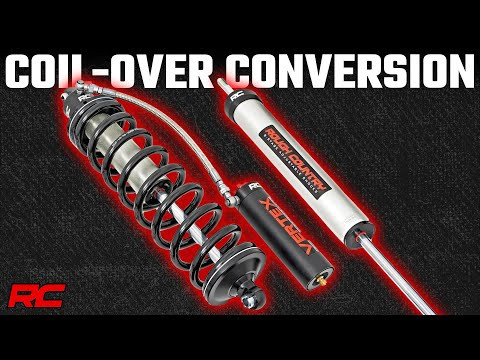

Durable Components. When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Radius Arm Suspension Lift features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. At 27lbs each, these beefy, upgraded Radius Arms dwarf stock equipment and feature durable Clevite Rubber Bushings for maximum vibration absorption. Rough Country's 6" Radius Coilover Conversion Lift Kit features top-mounted reservoir brackets and coil-over mounts constructed from 1/4-inch steel. Utilizing this conversion kit you're removing the factory independent coil shock and coil set-up and replacing it with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover. Rough Country's Vertex Coilovers feature a monotube design with an external reservoir for increased oil capacity and damping sensitivity. When it comes to investing in a high-end kit, you'll be pleased to find that Rough Country's 2.5in piston design is beefier and offers an impressive 56% greater fluid capacity than the average reservoir shock. Each kit is paired with a monotube shock that provides optimal damping control.

Installation. Requiring cutting and drilling to install, an estimated timeframe of 6-10 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!

Limited Lifetime Replacement Warranty. Rough Country's 6-inch Radius Arm Coilover Conversion Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

Features:

• 100% bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Includes heavy-duty radius arms equipped with durable rubber bushings for maximum vibration absorption
• New radius arms help maintain factory angles
• Includes adjustable alignment cam at the axle to allow caster adjustment
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks

Notes:

• Does NOT fit dually models
• Factory rear contact overload springs will need to be removed

Install Time: 6-10 hours

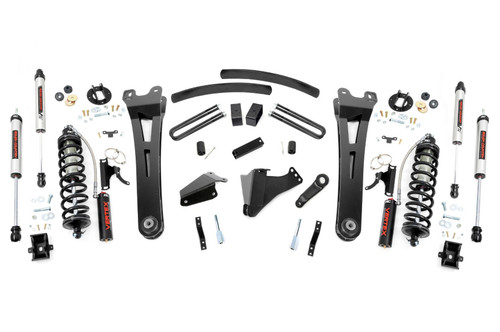

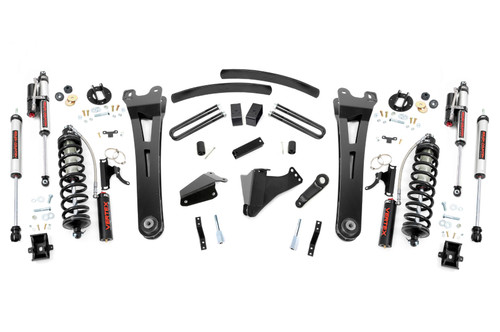

Front Components:

• Vertex Coilovers
• Radius Arms
• Sway-Bar Drop Brackets
• Track Bar Drop Bracket
• Stabilizer Relocation Bracket
• Pitman Arm
• Stainless Steel Brake Lines
• Brake Line Brackets
• Bumpstop Spacers
• Hardware

Rear Components:

• Fabricated Lift Blocks
• Add-A-Leafs
• Brake Line Bracket
• U-bolts
• Hardware

Tire, Wheel, and Offset Info:

• 37x12.50R17:17x9:8x170:-12:-
• 37x12.50R17:17x9:8x170:+0:-
• 37x12.50R17:17x9:8x170:+1:-
• 37x12.50R18:18x9:8x170:-12:-
• 37x12.50R18:18x9:8x170:+0:-
• 37x12.50R18:18x9:8x170:+1:-
• 37x12.50R20:20x9:8x170:-12:-
• 37x12.50R20:20x9:8x170:+0:-
• 37x12.50R20:20x9:8x170:+1:-
• 37x12.50R20:20x10:8x170:-25:Minor Trimming
• 37x12.50R20:20x10:8x170:-24:Minor Trimming
• 37x12.50R20:20x10:8x170:-19:Minor Trimming
• 37x12.50R20:20x10:8x170:-18:Minor Trimming
• 37x12.50R20:20x12:8x170:-44:Minor Trimming
• 37x12.50R22:22x10:8x170:-25:Minor Trimming
• 37x12.50R22:22x10:8x170:-24:Minor Trimming
• 37x12.50R22:22x10:8x170:-19:Minor Trimming
• 37x12.50R22:22x10:8x170:-18:Minor Trimming
• 37x12.50R22:22x12:8x170:-44:Minor Trimming

Title: Rough Country 6 Inch Lift Kit - Gas - Radius Arm - C/O Vertex - Ford Super Duty (05-07)
