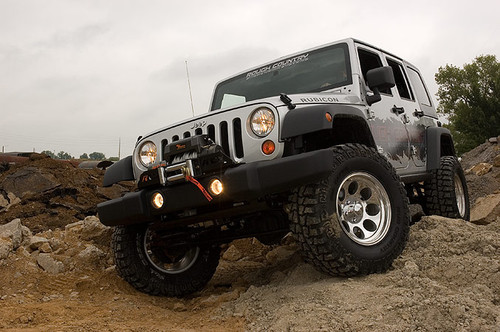

Rough Country 4 Inch Lift Kit - M1 - Jeep Wrangler JK 2WD/4WD (2007-2018)

Give your Jeep a total transformation with Rough Country's 4in Suspension Lift! This all-inclusive kit comes with everything you need to give your vehicle aggressive good looks and improved off-road performance!

This kit features lifted coil springs and coil correction plates, providing lift height and impeccable vibration dampening on any terrain. Best of all, this kit features Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.

Features:

• Easy bolt-on installation
• Increased ground clearance
• Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more efficiently

Notes:

• Does NOT fit 2-door models
• 2012-2018 models require exhaust modifications to clear the front driveshaft (#1030)
• If using stock wheels, 1.5in wheel spacers are required
• On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance, it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally, this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed.

Install Time: 4-5 hours

Front Components:

• Lifted coil springs
• Track bar drop bracket
• Pitman arm
• Brake line relocation brackets
• Shock relocation brackets
• Cam bolts
• Hardware

Install Time: 4-5 hours

Rear Components:

• Lifted coil springs
• Extended sway-bar links
• Coil correction plates
• Track bar drop bracket
• Brake line relocation brackets
• Hardware

Tire, Wheel, and Offset Info:

35x12.50R18: Factory 18: 5x5.0: - : 1.5 Spacer

35x12.50R17: 17x8.5: 5x5.0: +0: -

35x12.50R17: 17x8.5: 5x5.0: +1: -

... (more tire, wheel, and offset info available)
