Rough Country 8 Inch Lift Kit - 4 Link - M1 - Ford Super Duty 4WD (2008-2010)
Compliment your 08-10 Ford F-250/350's aggressive, good looks with Rough Country's 4-Link Suspension Lift System. Rough Country's 8-inch Lift Kit was engineered to retain the F-250/350's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 4-Link Suspension Lift System features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.
This all-inclusive kit also features an adjustable lower control arms at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - perfect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.
This innovative kit design features a 100% bolt-on installation process that is lightning fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's Rough Country's 4-Link Suspension Lift System is backed by our Lifetime Replacement Warranty.
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems.

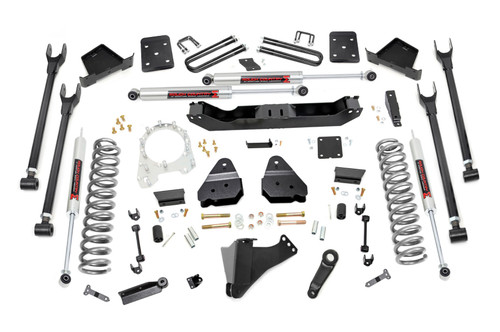

Front Components:
- Lifted coil springs
- Fixed upper control arms
- Adjustable lower control arms
- Radius arm drop brackets
- Extended sway-bar links
- Track bar drop bracket
- Stabilizer relocation brackets
- Pitman arm
- Stainless steel braided brake lines
- Bumpstop spacers
- Hardware
Install Time: 8 - 10 hours
Rear Components:
- 8 in fabricated anti-wrap lift blocks
- Carrier bearing drop bracket
- U-bolts
- Hardware
Tire, Wheel, and Offset Info:
- 37x13.50R17:17x9:8x170:-12:-
- 37x13.50R17:17x9:8x170:+0:-
- 37x13.50R17:17x9:8x170:+1:-
- 37x13.50R18:18x9:8x170:-12:-
- 37x13.50R18:18x9:8x170:+0:-
- 37x13.50R18:18x9:8x170:+1:-
- 37x13.50R20:20x9:8x170:-12:-
- 37x13.50R20:20x9:8x170:+0:-
- 37x13.50R20:20x9:8x170:+1:-
- 37x12.50R20:20x10:8x170:-25:-
- 37x12.50R20:20x10:8x170:-24:-
- 37x12.50R20:20x10:8x170:-19:-
- 37x12.50R20:20x10:8x170:-18:-
- 37x12.50R20:20x12:8x170:-44:Trimming Required
- 37x12.50R22:22x10:8x170:-25:-
- 37x12.50R22:22x10:8x170:-24:-
- 37x12.50R22:22x10:8x170:-19:-
- 37x12.50R22:22x10:8x170:-18:-
- 37x12.50R22:22x12:8x170:-44:Trimming Required
Specs
- SKU: HEC 59240
- UPC: 840269918261
- Weight: 123.45 LBS
- Product Sub Category: Lift Kits
- Data Fitment Make: Ford
- Data Fitment Model: F250, F350
- Data Fitment Year: 2008, 2009, 2010
- Data Default Qt: 1
- Data Product Type: Mom Class Bolt-on
- Data Shipping Group: HEC shipping
- Kit Height: 8
Fitment
Make | Model | Sub-model | Years |
---|---|---|---|
Ford | F-250 Super Duty | Cabela's | 2009,2010 |
Ford | F-250 Super Duty | FX4 | 2008,2009 |
Ford | F-250 Super Duty | Harley-Davidson Edition | 2008,2009,2010 |
Ford | F-250 Super Duty | King Ranch | 2008,2009,2010 |
Ford | F-250 Super Duty | Lariat | 2008,2009,2010 |
Ford | F-250 Super Duty | XL | 2008,2009,2010 |
Ford | F-250 Super Duty | XLT | 2008,2009,2010 |
Ford | F-350 Super Duty | Cabela's | 2009,2010 |
Ford | F-350 Super Duty | FX4 | 2008,2009 |
Ford | F-350 Super Duty | Harley-Davidson Edition | 2008,2009,2010 |
Ford | F-350 Super Duty | King Ranch | 2008,2009,2010 |
Ford | F-350 Super Duty | Lariat | 2008,2009,2010 |
Ford | F-350 Super Duty | XL | 2008,2009,2010 |
Ford | F-350 Super Duty | XLT | 2008,2009,2010 |
