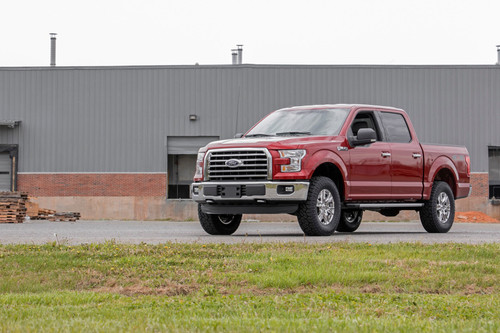

Level your F-150 with Rough Country's 2 inch bolt-on leveling kit! This easy to install spacer combines great looks and strength, while providing 2 inches of lift for enough ride height to run up to 33-inch tires!
Eliminate the nose-down look of your stock truck with this simple solution that raises the front end of your truck to be level with the rear! This spacer features a heavy-duty proprietary composite construction that will never rust or succumb to the elements!
This kit also features a set of rear blocks and Rough Country's N3 Nitrogen-charged shock absorbers. Rough Country's spacer design eliminates all the guesswork with a specially designed driver and passenger side pattern that allows for clearance between the upper control arm and the strut.
This leveling kit is easy to install, with no need to disassemble your factory strut and a 100 percent bolt-on installation process that can be done in no time flat using common tools in a home garage! Includes Rough Country's Lifetime Replacement Guarantee!
Features:
- Easy bolt-on installation
- Maintains factory ride quality
- Increased ground clearance
- Levels the front with the rear of the vehicle
- No need to disassemble your struts to install
- Built from heavy-duty proprietary composite material that will never rust or succumb to the elements
Notes: Does Not fit Raptor models.
Details:
- Sold As Kit
- Drive 2WD|4WD
- Lift Height 2.0 inch
- Mount Style Bolt On
- Front Components: Strut extensions, Hardware
- Rear Components: U-bolts, Lift Blocks
The Manufacture or Brand name of the product is: Rough Country 2 Inch Lift Kit - N3 - Ford F-150 2WD/4WD (2009-2020)
Features: Easy bolt-on installation; Maintains factory ride quality; Increased ground clearance; Levels the front with the rear of the vehicle; No need to disassemble your struts to install Built from heavy-duty proprietary composite material that will never rust or succumb to the elements
Install Time: 3-4 hours
Notes: Front Components: Strut extensions, Hardware; Rear Components: U-bolts, Lift Blocks; Tire, Wheel, and Offset Info: 295/60R20: Factory 20: 6x135: -: 0.25 Spacer; 285/75R17: Factory 17: 6x135: -: -; 285/70R18: Factory 18: 6x135: -: -; 33x12.50R17: 17x8.5: 6x135: +0: -; 285/70R17: 17x8.5: 6x135: +0: -; 33x12.50R17: 17x8.5: 6x135: +1: -; 33x12.50R17: 17x9: 6x135: -12: -; 285/70R17: 17x9: 6x135: -12: -; 33x12.50R17: 17x9: 6x135: +0: -; 285/70R17: 17x9: 6x135: +0: -; 33x12.50R17: 17x9: 6x135: +1: -; 285/70R17: 17x9: 6x135: +1: -; 33x12.50R17: 17x9: 6x135: +18: -; 285/70R17: 17x9: 6x135: +18: -; 33x12.50R18: 18x8.5: 6x135: +0: -; 305/60R18: 18x8.5: 6x135: +0: -; 33x12.50R18: 18x8.5: 6x135: +1: -; 305/60R18: 18x8.5: 6x135: +1: -; 33x12.50R18: 18x9: 6x135: -12: Trimming Required; 285/65R18: 18x9: 6x135: -12: -; 33x12.50R18: 18x9: 6x135: +0: -; 305/60R18: 18x9: 6x135: +0: -; 33x12.50R18: 18x9: 6x135: +1: -; 305/60R18: 18x9: 6x135: +1: -; 285/65R18: 18x9: 6x135: +1: -; 33x12.50R18: 18x9: 6x135: +18: -; 305/60R18: 18x9: 6x135: +18: -; 33x12.50R18: 18x9: 6x135: +20: -; 305/60R18: 18x9: 6x135: +20: -; 33x12.50R20: 20x9: 6x135: -12: -; 305/55R20: 20x9: 6x135: -12: -; 285/55R20: 20x9: 6x135: -12: -; 33x12.50R20: 20x9: 6x135: +0: -; 305/55R20: 20x9: 6x135: +0: -; 285/55R20: 20x9: 6x135: +0: -; 33x12.50R20: 20x9: 6x135: +1: -; 305/55R20: 20x9: 6x135: +1: -; 285/55R20: 20x9: 6x135: +1: -; 33x12.50R20: 20x9: 6x135: +18: -; 305/55R20: 20x9: 6x135: +18: -; 33x12.50R20: 20x9: 6x135: +20: -; 305/55R20: 20x9: 6x135: +20: -; 285/55R20: 20x9: 6x135: +20: -; 33x12.50R20: 20x10: 6x135: -25: Trimming Required; 305/55R20: 20x10: 6x135: -25: -; 285/55R20: 20x10: 6x135: -25: -; 33x12.50R20: 20x10: 6x135: -24: Trimming Required; 305/55R20: 20x10: 6x135: -24: -; 285/55R20: 20x10: 6x135: -24: -; 33x12.50R20: 20x10: 6x135: -19: Trimming Required; 305/55R20: 20x10: 6x135: -19: -; 285/55R20: 20x10: 6x135: -19: -; 33x12.50R20: 20x10: 6x135: -18: Trimming Required; 305/55R20: 20x10: 6x135: -18: -; 285/55R20: 20x10: 6x135: -18: -; 33x12.50R20: 20x12: 6x135: -44: Trimming Required; 305/55R20: 20x12: 6x135: -44: -; 33x12.50R22: 22x10: 6x135: -25: Trimming Required; 33x12.50R22: 22x10: 6x135: -24: Trimming Required; 33x12.50R22: 22x10: 6x135: -19: Trimming Required; 33x12.50R22: 22x10: 6x135: -18: Trimming Required; 33x12.50R22: 22x12: 6x135: -44: Trimming Required; Title: Rough Country 2 Inch Lift Kit - N3 - Ford F-150 2WD/4WD (2009-2020)
Specs
- SKU: HEC 52230
- UPC: 843030149611
- Weight: 25.75 LBS
- Product Sub Category: Leveling Kits
- Kit Height: 2
- Data Fitment Make: Ford
- Data Fitment Model: F150
- Data Fitment Year: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
- Data Product Type: Mom Class Bolt-on
- Data Default Qt: 1
- Data Product Badges: free_shipping
- Data Shipping Group: HEC shipping
Fitment
Make | Model | Sub-model | Years |
---|---|---|---|
Ford | F-150 | FX2 | 2010,2011,2012,2013,2014 |
Ford | F-150 | FX4 | 2009,2010,2011,2012,2013,2014 |
Ford | F-150 | Harley-Davidson Edition | 2010,2011,2011,2012,2012 |
Ford | F-150 | King Ranch | 2009,2010,2010,2011,2011,2012,2012,2013,2013,2014,2014,2015,2015,2016,2016,2017,2017,2018,2018,2019,2019,2020,2020 |
Ford | F-150 | Lariat | 2009,2010,2010,2011,2011,2012,2012,2013,2013,2014,2014,2015,2015,2016,2016,2017,2017,2018,2018,2019,2019,2020,2020 |
Ford | F-150 | Lariat Limited | 2011 |
Ford | F-150 | Limited | 2013,2014,2014,2016,2016,2017,2017,2018,2018,2019,2019,2020,2020 |
Ford | F-150 | Platinum | 2009,2010,2010,2011,2011,2012,2012,2013,2013,2014,2014,2015,2015,2016,2016,2017,2017,2018,2018,2019,2019,2020,2020 |
Ford | F-150 | SSV | 2016,2017,2017,2018,2018,2019,2019,2020,2020 |
Ford | F-150 | STX | 2009,2010,2010,2011,2011,2012,2012,2013,2013,2014,2014 |
Ford | F-150 | XL | 2009,2010,2010,2011,2011,2012,2012,2013,2013,2014,2014,2015,2015,2016,2016,2017,2017,2018,2018,2019,2019,2020,2020 |
Ford | F-150 | XLT | 2009,2010,2010,2011,2011,2012,2012,2013,2013,2014,2014,2015,2015,2016,2016,2017,2017,2018,2018,2019,2019,2020,2020 |
