Actual Product May Vary

Rough Country Suspension

11-14 Ford F250 4WD 6in Lift Kit 4-Link No OVLD M1

$1,749.95
$1,739.95
(You save $10.00 )

Description

11-14 Ford F250 4WD 6in Lift Kit 4-Link No OVLD M1 Actual Product May Vary

Product Info

Rough Country 6 Inch Lift Kit - 4-Link - No OVLD - M1 - Ford Super Duty (11-14)

Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country's 4-Link F-250 Lift Kit for models without rear factory contact overload springs. This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country's durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.

This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. It also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country's Nitrogen-Charged N3 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride.

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Radius arm drop brackets allow for properly set caster
  • Proper caster is crucial to maintaining factory handling and driveability
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem

Does NOT fit F-350 models, gas engine models, dually models, or models equipped with rear factory contact overload springs. The new fabricated lift block replaces the factory equipped lift block. Installation time is estimated at 6-8 hours.

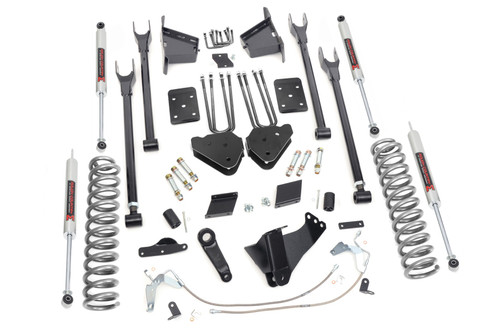

Front Components:

Lifted coil springs, Fixed upper control arms, Adjustable lower control arms, Radius arm drop brackets, Sway-bar drop brackets, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Stainless steel braided brake lines, Brake line brackets, Bumpstop spacers, Hardware

Rear Components:

Fabricated anti-wrap lift blocks, Carrier bearing drop bracket, Brake line brackets, U-bolts, Hardware

Tire, Wheel, and Offset Info:

37x12.50R17:17x9:8x170:-12:-; 37x12.50R17:17x9:8x170:+0:-; 37x12.50R17:17x9:8x170:+1:-; 37x12.50R18:18x9:8x170:-12:-; 37x12.50R18:18x9:8x170:+0:-; 37x12.50R18:18x9:8x170:+1:-; 37x12.50R20:20x9:8x170:-12:-; 37x12.50R20:20x9:8x170:+0:-; 37x12.50R20:20x9:8x170:+1:-; 37x12.50R20:20x10:8x170:-25:-; 37x12.50R20:20x10:8x170:-24:-; 37x12.50R20:20x10:8x170:-19:-; 37x12.50R20:20x10:8x170:-18:-; 37x12.50R20:20x12:8x170:-44:Trimming Required; 37x12.50R22:22x10:8x170:-25:-; 37x12.50R22:22x10:8x170:-24:-; 37x12.50R22:22x10:8x170:-19:-; 37x12.50R22:22x10:8x170:-18:-; 37x12.50R22:22x12:8x170:-44:Trimming Required

Specs

  • SKU: HEC 53240
  • UPC: 840269917783
  • Weight: 123.45 LBS
  • Product Sub Category: Lift Kits
  • Data Fitment Make: Ford
  • Data Fitment Model: F250
  • Data Fitment Year: 2011, 2012, 2013, 2014
  • Data Default Qt: 1
  • Data Product Type: Mom Class Bolt-on
  • Data Shipping Group: HEC shipping
  • Kit Height: 6

Fitment

Make Model Sub-model Years
FordF-250 Super DutyKing Ranch2011,2012,2013,2014
FordF-250 Super DutyLariat2011,2012,2013,2014
FordF-250 Super DutyPlatinum2013,2014
FordF-250 Super DutyXL2011,2012,2013,2014
FordF-250 Super DutyXLT2011,2012,2013,2014
