14-18 Chevy/GMC 1500 6in Lift Kit Cast Steel M1 Struts/M1

Rough Country 6 Inch Lift Kit - Cast Steel - M1 Struts/M1 - Chevy/GMC 1500 (14-18)

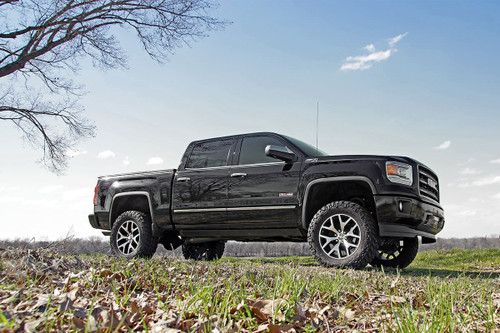

Get the look you really want with Rough Country's 6-inch Suspension Kit for 4WD '14+ Chevy / GMC 1500 Pickups. This massive kit affords your truck the ability to run 33-inch tires on factory wheels with our beefy lifted knuckles and is designed with 100% laser-cut materials for the best possible fit on your vehicle. Includes a set of front and rear high-clearance cross members featuring the "RC" logo and a differential skid-plate. Each kit also comes with a set of durable, fabricated anti-wrap lift blocks that offer a huge boost while helping prevent axle wrap issues. Give your pickup an aggressive, lifted and level stance with incredible ride quality! Our innovative Lifted Knuckle design boosts ride height while keeping all components at the optimum angles for a factory-like ride. This kit includes a set of rear V2 Monotube Shocks, balanced for on and off-road use. Includes Rough Country's Lifetime Replacement Warranty.

Features:

• Can run factory 20-inch wheels
• Provides highly sought level stance
• High clearance crossmember design gives unmatched ground clearance
• 100% precision laser cut materials using the latest computer aided design process
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Includes application valved V2 Monotube series shock absorbers which offer the best in balanced performance for on and off-road use

Notes:

• Requires cutting and drilling
• Does not fit Hybrid eAssist models
• Does NOT fit models with stock Cast Aluminum or Stamped Steel control arms
• Does NOT fit GMC Denali models with Magnetic Ride Control
• If wider than 295/60R20 tires are used, offset wheels will be required and trimming may be required
• If truck is equipped with a mass damper on the front differential, the damper must be removed

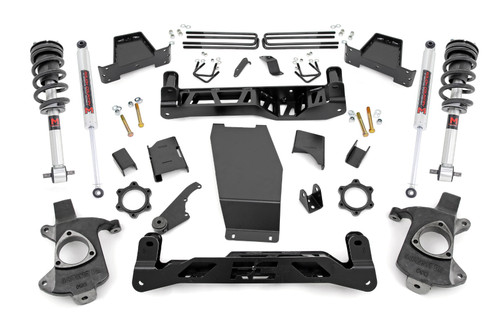

Front Components:

Lifted knuckles, Front crossmember, Rear crossmember, Lifted N3 struts, CV spacers, Differential drop brackets, Differential skid plate, Sway-bar drop brackets, Hardware

Rear Components:

Fabricated lift blocks, Brake line brackets, U-bolts, Hardware

Tire, Wheel, and Offset Info:

295/70R17: Factory 17: 6x5.5: -: 0.25 Spacer

295/60R20: Factory 20: 6x5.5: -: 0.25 Spacer

285/65R18: Factory 18: 6x5.5: -: 0.25 Spacer

305/70R17: 17x9: 6x5.5: +12: -

33x12.50R17: 17x9: 6x5.5: +18: 0.25 Spacer

305/70R17: 17x9: 6x5.5: +18: 0.25 Spacer

33x12.50R17: 17x9: 6x5.5: +20: 0.25 Spacer

305/65R18: 18x9: 6x5.5: +12: -

33x12.50R18: 18x9: 6x5.5: +18: 0.25 Spacer

305/65R18: 18x9: 6x5.5: +18: 0.25 Spacer

285/65R18: 18x9: 6x5.5: +18: -

285/65R18: 18x9: 6x5.5: +19: -

33x12.50R18: 18x9: 6x5.5: +20: 0.25 Spacer

285/65R18: 18x9: 6x5.5: +20: -

305/55R20: 20x9: 6x5.5: +12: -

33x12.50R20: 20x9: 6x5.5: +18: 0.25 Spacer

305/55R20: 20x9: 6x5.5: +18: 0.25 Spacer

295/60R20: 20x9: 6x5.5: +18: -

33x12.50R20: 20x9: 6x5.5: +20: 0.25 Spacer

305/55R20: 20x9: 6x5.5: +20: -

295/60R20: 20x9: 6x5.5: +20: 0.25 Spacer
