Description
![14-18 Chevy/GMC 1500 PU 2Wd Lift Kit Vertex & V2 14-18 Chevy/GMC 1500 PU 2Wd Lift Kit Vertex & V2](https://cdn11.bigcommerce.com/s-khshc9ha2m/images/stencil/500x659/products/87026/13575492/f%252Fd%252F7%252F5%252Ffd75f41a173ac3080bddaa4c088ff161f2ebae94_18757_23757__54382.1724182558.jpg?c=1)
Product Info
Get the look you really want with Rough Country's 7-inch Suspension Kit for Chevy and GMC 1500 Pickups. This massive kit affords your truck the ability to run up to 35-inch tires on factory wheels with our beefy lifted knuckles and is designed with 100 percent laser-cut materials for the best possible fit on your vehicle!
This kit includes a set of front and rear high-clearance cross members featuring the RC logo and a differential skid plate. Each kit also comes with a set of durable, fabricated anti-wrap lift blocks that offer a huge boost while helping prevent axle wrap issues.
Give your pickup an aggressive, lifted, and level stance with incredible ride quality!
Our innovative Lifted Knuckle design boosts ride height while keeping all components at the optimum angles for a factory-like ride.
Features:
- Can run factory 20-inch wheels*
- Provides highly sought level stance
- High clearance crossmember design gives unmatched ground clearance
- 100 percent precision laser-cut materials using the latest computer-aided design process
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks
Notes:
Does Not fit GMC Denali models with Magnetic Ride Control. Requires cutting and drilling. If the truck is equipped with a mass damper on the front differential, the damper must be removed.
Tire and Wheel Details:
IMPORTANT! - Installation of larger tires will Require a Hypertech Speedometer Calibrator (#732501) 18-inch or larger wheels are Required. Factory 20in wheels can be run but Require 1/4in wheel spacers with 295 tires (#1065) If wider than 35x12.50 R20 tires are used, offset wheels will be Required and trimming may be Required. Please view installation instructions for complete information on proper tire/wheel combinations.
Details:
- Sold As Kit
- Drive 2WD
- Tire Info 2285/75 R18:Factory 18:-- 235x12.50 R18:18x9:-:+12 to +12mm 235x11.50 R20:Factory 20:-- 235x12.50 R20:20x9:-:+12 to +12mm Requires 18 Inch or larger wheels 2 Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels If using aftermarket wheels you must maintain a max tire width of 12.5 inch If using factory wheels with a 1/4.0 inch spacer you must maintain a max tire width of 11.5 inch If using factory wheels without a wheel spacer you must maintain a max tire width of 11.0 inch
- Max Tire: 35.0 inch
- Lift Height: 7.0 inch

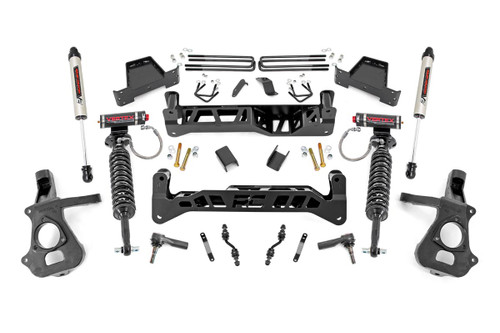

- Front Components: Lifted knuckles, Front crossmember, Rear crossmember, Lifted Vertex Reservoir Coil-Overs, Sway-bar drop brackets, Hardware
- Rear Components: Fabricated lift blocks, Brake line brackets, U-bolts, Hardware
The Manufacturer or Brand name of the product is: Rough Country 18757 7" Lift Kit
Features: Can run factory 20-inch wheels*; Provides highly sought level stance; High clearance crossmember design gives unmatched ground clearance; 100% precision laser-cut materials using the latest computer-aided design process; Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Installation Time: 8-10 hours
Notes: Front Components: Lifted knuckles, Front crossmember, Rear crossmember, Lifted Vertex Reservoir Coil-Overs, Sway-bar drop brackets, Hardware; Install Time: 8-10 hours; Rear Components: Fabricated lift blocks, Brake line brackets, U-bolts, Hardware; Tire, Wheel, and Offset Info: 295/70R18: Factory 18: 6x5.5: 0.25 Spacer; 295/70R18: Factory 18: 6x5.5: -; 295/60R20: Factory 20: 6x5.5: 0.25 Spacer; 295/60R20: Factory 20: 6x5.5: -; 35x12.50R17: 17x8.5: 6x5.5: +0: -; 35x12.50R17: 17x8.5: 6x5.5: +1: -; 35x12.50R17: 17x9: 6x5.5: +0: -; 35x12.50R17: 17x9: 6x5.5: +1: -; 315/70R17: 17x9: 6x5.5: +12: -; 35x12.50R17: 17x9: 6x5.5: +18: -; 315/70R17: 17x9: 6x5.5: +18: -; 35x12.50R18: 18x8.5: 6x5.5: +0: -; 35x12.50R18: 18x8.5: 6x5.5: +1: -; 35x12.50R18: 18x9: 6x5.5: +0: -; 35x12.50R18: 18x9: 6x5.5: +1: -; 295/70R18: 18x9: 6x5.5: +12: -; 295/70R18: 18x9: 6x5.5: +12: 0.25 Spacer; 35x12.50R18: 18x9: 6x5.5: +18: -; 295/70R18: 18x9: 6x5.5: +18: 0.25 Spacer; 295/70R18: 18x9: 6x5.5: +18: -; 35x12.50R18: 18x9: 6x5.5: +19: 0.25 Spacer; 35x12.50R18: 18x9: 6x5.5: +20: -; 35x12.50R20: 20x9: 6x5.5: +0: -; 295/60R20: 20x9: 6x5.5: +0: -; 35x12.50R20: 20x9: 6x5.5: +1: -; 295/60R20: 20x9: 6x5.5: +1: -; 295/65R20: 20x9: 6x5.5: +12: -; 295/65R20: 20x9: 6x5.5: +12: 0.25 Spacer; 35x12.50R20: 20x9: 6x5.5: +18: -; 295/65R20: 20x9: 6x5.5: +18: -; 295/65R20: 20x9: 6x5.5: +18: 0.25 Spacer; 295/60R20: 20x9: 6x5.5: +18: -; 35x12.50R20: 20x9: 6x5.5: +20: -; 295/60R20: 20x9: 6x5.5: +20: 0.25 Spacer; 295/60R20: 20x10: 6x5.5: -19: -; 295/60R20: 20x10: 6x5.5: -18: -;
Title: Rough Country 7 in Lift Kit - Alu/Stamp Steel - Vertex/V2 - Chevy/GMC 1500 (14-18)
Specs
- SKU: HEC 18757
- UPC: 843030172770
- Product Sub Category: Lift Kits
- Kit Height: 7
- Data Fitment Make: Chevy, GMC
- Data Fitment Model: K2
- Data Fitment Year: 2014, 2015, 2016, 2017, 2018
- Data Product Type: Mom Class Bolt-on
- Data Default Qt: 1
- Data Product Badges: free_shipping
- Data Shipping Group: HEC shipping
Fitment
Make | Model | Sub-model | Years |
---|---|---|---|
Chevrolet | Silverado 1500 | Custom | 2016,2017,2018 |
Chevrolet | Silverado 1500 | High Country | 2014,2015,2016,2017,2018 |
Chevrolet | Silverado 1500 | LS | 2015,2016,2017,2018 |
Chevrolet | Silverado 1500 | LT | 2014,2015,2016,2017,2018 |
Chevrolet | Silverado 1500 | LTZ | 2014,2015,2016,2017,2018 |
Chevrolet | Silverado 1500 | SSV | 2015,2016,2017,2018 |
Chevrolet | Silverado 1500 | WT | 2014,2015,2016,2017,2018 |
Chevrolet | Silverado 1500 LD | Custom | 2019 |
Chevrolet | Silverado 1500 LD | LT | 2019 |
Chevrolet | Silverado 1500 LD | WT | 2019 |
GMC | Sierra 1500 | Base | 2014,2015,2016,2017,2018 |
GMC | Sierra 1500 | SLE | 2014,2015,2016,2017,2018 |
GMC | Sierra 1500 | SLT | 2014,2015,2016,2017,2018 |
