14-18 Chevy/GMC 1500 PU 4Wd Cast Steel Lift Kit Vertex

Can run factory 20-inch wheels. Provides highly sought level stance. High clearance crossmember design gives unmatched ground clearance. 100 percent precision laser cut materials using the latest computer aided design process. Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

Features:

• Can run factory 20-inch wheels
• Provides highly sought level stance
• High clearance crossmember design gives unmatched ground clearance
• 100 percent precision laser cut materials using the latest computer aided design process
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks

Notes: IMPORTANT! - Installation of larger tires will Require a Hypertech Speedometer Calibrator (#732501) Does Not fit Hybrid eAssist models Does Not fit models with stock Cast Aluminum or Stamped Steel Control Arms Does Not fit GMC Denali models with Magnetic Ride Control. Requires cutting and drilling. If wider than 35x12.50 R20 tires are used, offset wheels will be Required and trimming may be Required. 18-inch or larger wheels are Required. Please view installation instructions for complete information on proper tire/wheel combinations. If truck is equipped with a mass damper on the front differential, the damper must be removed.

Details:

• Sold As Kit
• Material Cast Steel
• Drive 4WD
• Tire Info 315/70 R17:17x9:-:+12 to +18mm ^1,2295/70 R18:Factory 18:-- ²315/65 R18:18x9:-:+12 to +18mm ^1,2295/60 R20:Factory 20:-- ²315/55 R20:20x9:-:+12 to +18mm ¹ Factory 18.0 inch and 20in wheels can be run but require 1/4.0 inch wheel spacers with 295 tires ² Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels
• Max Tire 35.0 inch
• Lift Height 7.0 inch

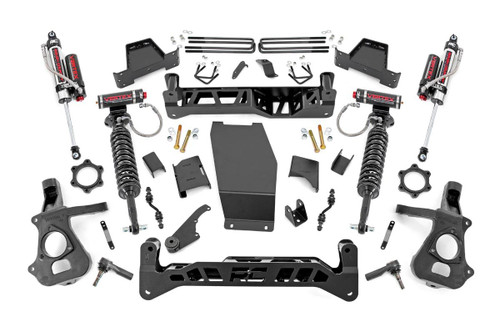

• Front Components Lifted knuckles Front crossmember Rear crossmember Lifted Vertex Reservoir Coil-Overs CV spacers Differential drop brackets Differential skid plate Sway-bar drop brackets Hardware
• Rear Components Fabricated lift blocks Brake line brackets U-bolts Hardware

The Manufacture or Brand name of the product is: Rough Country 22851 7 Inch Lift Kit

Features: Can run factory 20-inch wheels; Provides highly sought level stance; High clearance crossmember design gives unmatched ground clearance; 100% precision laser cut materials using the latest computer aided design process; Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

Install Time: 8-10 hours

Notes: Front Components: Lifted knuckles, Front crossmember, Rear crossmember, Lifted Vertex Reservoir Coil-Overs, CV spacers, Differential drop brackets, Differential skid plate, Sway-bar drop brackets, Hardware; Rear Components: Fabricated lift blocks, Brake line brackets, U-bolts, Hardware; Tire, Wheel, and Offset Info: 35x12.50R20: Factory 20: 6x5.5: 0.25 Spacer; 295/70R18: Factory 18: 6x5.5: 0.25 Spacer; 35x12.50R18: 18x8.5: 6x5.5: +1: -; 35x12.50R18: 18x9: 6x5.5: -12: -; 35x12.50R18: 18x9: 6x5.5: +0: Trimming Required; 35x12.50R18: 18x9: 6x5.5: +1: -; 35x12.50R20: 20x9: 6x5.5: -12: -; 295/60R20: 20x9: 6x5.5: -12: Minor Trimming; 35x12.50R20: 20x9: 6x5.5: +0: -; 295/60R20: 20x9: 6x5.5: +0: Minor Trimming; 35x12.50R20: 20x9: 6x5.5: +1: -; 295/60R20: 20x9: 6x5.5: +1: Minor Trimming; 35x12.50R20: 20x10: 6x5.5: -25: Trimming Required; 295/60R20: 20x10: 6x5.5: -25: Minor Trimming; 35x12.50R20: 20x10: 6x5.5: -24: Trimming Required; 295/60R20: 20x10: 6x5.5: -24: Minor Trimming; 35x12.50R20: 20x10: 6x5.5: -19: Trimming Required; 295/60R20: 20x10: 6x5.5: -19: Minor Trimming; 35x12.50R20: 20x10: 6x5.5: -18: Trimming Required; 295/60R20: 20x10: 6x5.5: -18: Minor Trimming; 35x12.50R22: 22x10: 6x5.5: -25: Trimming Required; 35x12.50R22: 22x10: 6x5.5: -24: Trimming Required; 35x12.50R22: 22x10: 6x5.5: -19: Trimming Required; 35x12.50R22: 22x10: 6x5.5: -18: Trimming Required; Title: Rough Country 7 Inch Lift Kit - Cast Steel - Vertex - Chevy/GMC 1500 (14-18)
