Description
Actual Product May Vary
Product Info
- Number: HEC 396.20
- Manufacturer: Rough Country
- Amt of Lift: 5"

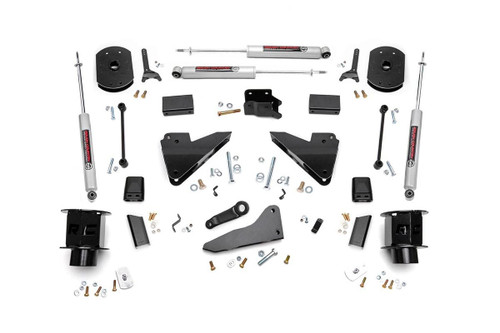

- Front Suspension: Coil Spring Spacers, Radius Arms, Track Bar Bracket, Sway Bar Brackets, Pitman Arm, Hardware
- Rear Suspension: Rear Lift Spacers, Track Bar Bracket, Sway Bar Links, Ride Height Arms, Bump Stop Brackets, Hardware
- Other Major Components Included: Shocks Included: Front - Yes, Rear - Yes
- Special Features: Features N2O shocks
- Special Notes: Fits only trucks equipped with rear Air Ride suspension OR rear coil spring trucks. Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front. Requires minor drilling and cutting. On vehicles equipped with a two-piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take-off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
- Special Wheel Requirements: 17"+ Size w/ 5" Backside
- Max Tire Size: 37x12.50
- Install Time: 6-8 hours
Product Features:
- Increased ground clearance
- Maintains factory progressive rate coil springs
- Track bar bracket keeps the front axle properly centered
- Fits both rear coil spring and rear air ride suspension models
- Radius Arms offer a more factory-like angle and feature a durable, Clevite Rubber Bushing for maximum vibration absorption
- Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front - Air Ride models ONLY
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use
Additional Notes:
- Does NOT fit "Power Wagon" models
- Requires drilling and cutting
- On vehicles equipped with a two-piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take-off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing
Specs
-
SKU:
HEC 396.20
-
UPC:
843030127008
-
Product Sub Category:
Lift Kits
-
Kit Height:
5
-
Data Fitment Make:
Ram (09-Current)
-
Data Fitment Model:
Ram 2500, Ram 3500
-
Data Fitment Year:
2014, 2015, 2016, 2017, 2018, 2019
-
Data Product Type:
Mom Class Lift Kit
-
Data Default Qt:
1
-
Data Product Badges:
free_shipping
-
Data Shipping Group:
HEC shipping
Manuals and Guides
Fitment
Make |
Model |
Sub-model |
Years |
Ram | 2500 | Big Horn | 2014,2015,2016,2017,2018 |
Ram | 2500 | Laramie | 2014,2015,2016,2017,2018 |
Ram | 2500 | Laramie Limited | 2014,2015 |
Ram | 2500 | Laramie Longhorn | 2014,2015,2016,2017,2018 |
Ram | 2500 | Limited | 2016,2017,2018 |
Ram | 2500 | Lone Star | 2014,2015 |
Ram | 2500 | Outdoorsman | 2014,2015,2016 |
Ram | 2500 | SLT | 2014,2015,2016,2017,2018 |
Ram | 2500 | Tradesman | 2014,2015,2016,2017,2018 |
Notes: | Does NOT fit "Power Wagon" models. Requires drilling and cutting. On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity |
