15-16 Ford F250 4WD w/o OL 4-Link Lift Kit Vertex

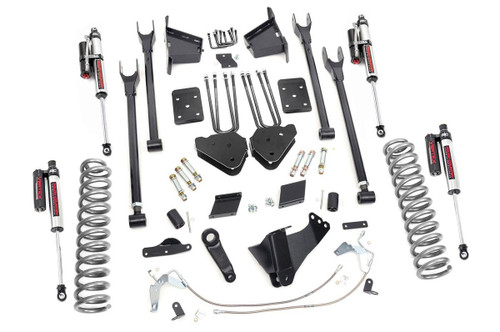

Rough Country 6 Inch Lift Kit - 4-Link - No OVLD - Vertex - Ford Super Duty (15-16)

Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country's 4-Link F-250 Lift Kit. This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country's durable, fixed upper arms and adjustable lower control arms.

A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.

This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap.

This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift.

Best of all, this kit features Rough Country's Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country's Lifetime Replacement Warranty

Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster.
• Proper caster is crucial to maintaining factory handling and driveability.
• Includes application valved N2.0 series shock absorbers which offer the best in balanced performance for on and off-road use.
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
• Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

Details:

• Sold As Kit
• Drive: 4WD
• Lift Height: 6.0 inch
• Mount Style: Bolt On
• Front Components: Lifted coil springs, Fixed upper control arms, Adjustable lower control arms, Radius arm drop brackets, Sway-bar drop brackets, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Stainless steel braided brake lines, Brake line brackets, Bumpstop spacers, Hardware
• Rear Components: Fabricated anti-wrap lift blocks, Carrier bearing drop bracket, Brake line brackets, U-bolts, Hardware

Notes: Does Not fit F-350 models. Does Not fit gas engine models. Does Not fit dually models. Does Not fit models equipped with rear factory contact overload springs. New fabricated lift block replaces the factory equipped lift block.

Manufacturer: Rough Country

Model: 52750

Install Time: 6-8 hours

Tire, Wheel, and Offset Info:

37x12.50R17:17x9:8x170:-12:-

37x12.50R17:17x9:8x170:+0:-

37x12.50R17:17x9:8x170:+1:-

37x12.50R18:18x9:8x170:-12:-

37x12.50R18:18x9:8x170:+0:-

37x12.50R18:18x9:8x170:+1:-

37x12.50R20:20x9:8x170:-12:-

37x12.50R20:20x9:8x170:+0:-

37x12.50R20:20x9:8x170:+1:-

35x12.50R20:20x10:8x170:-44:Minor Trimming

37x12.50R20:20x10:8x170:-25:Minor Trimming

37x12.50R20:20x10:8x170:-24:Minor Trimming

37x12.50R20:20x10:8x170:-19:Minor Trimming

35x12.50R20:20x10:8x170:-19:-

37x12.50R20:20x10:8x170:-18:Minor Trimming

35x12.50R20:20x10:8x170:-18:-

35x12.50R22:22x10:8x170:-44:Minor Trimming

37x12.50R22:22x10:8x170:-25:Minor Trimming

37x12.50R22:22x10:8x170:-24:Minor Trimming

37x12.50R22:22x10:8x170:-19:Minor Trimming

35x12.50R22:22x10:8x170:-19:-

37x12.50R22:22x10:8x170:-18:Minor Trimming
