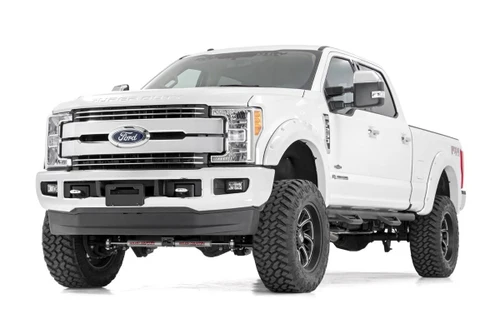

17-21 Ford F250/F350 DSL w/3.5in Axle 4.5in w/Frt DS&V2

Easy bolt-on installation

Increased ground clearance

Levels the front with the rear of the vehicle

Radius arm drop brackets allow for properly set caster.

Proper caster is crucial to maintaining factory handling and driveability.

Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

Notes: Does Not fit gas engine models. Does Not fit dually models. Does Not fit manual shift transfer cases Does Not work on models equipped with Tremor Factory Trim Package Does Not fit 2020 models with 10-speed transmission

Details:

• Sold As Kit
• Drive 4WD
• Lift Height 4.5 inch
• Fuel Type Diesel
• Mount Style Bolt On
• Front Components Lifted coil springs Radius arm drop brackets Front Drive Shaft Sway-bar links Track bar drop bracket Stabilizer relocation brackets Pitman arm Brake line brackets Bumpstop spacers Hardware
• Rear Components Fabricated lift blocks Brake line brackets U-bolts Hardware

Manufacturer: Rough Country

Product Name: 4.5 Inch Lift Kit - D/S - V2 - Ford Super Duty 4WD (2017-2022)

Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks

Installation Time: 6-8 hours

Tire, Wheel, and Offset Info:

• 35x12.50R17:17x9:8x170:-12:-
• 35x12.50R18:18x9:8x170:-12:-
• 35x12.50R18:18x10:8x170:-25:-
• 35x12.50R18:18x10:8x170:-24:-
• 35x12.50R18:18x10:8x170:-19:-
• 35x12.50R18:18x10:8x170:-18:-
• 35x12.50R20:20x9:8x170:-12:-
• 35x12.50R20:20x10:8x170:-25:-
• 35x12.50R20:20x10:8x170:-24:-
• 35x12.50R20:20x10:8x170:-19:-
• 295/60R20:20x10:8x170:-19:-
• 35x12.50R20:20x10:8x170:-18:-
• 295/60R20:20x10:8x170:-18:-
• 35x12.50R20:20x12:8x170:-44:Minor Trimming
• 35x12.50R22:22x10:8x170:-25:-
• 35x12.50R22:22x10:8x170:-24:-
• 35x12.50R22:22x10:8x170:-19:-
• 35x12.50R22:22x10:8x170:-18:-
• 35x12.50R22:22x12:8x170:-44:Minor Trimming
