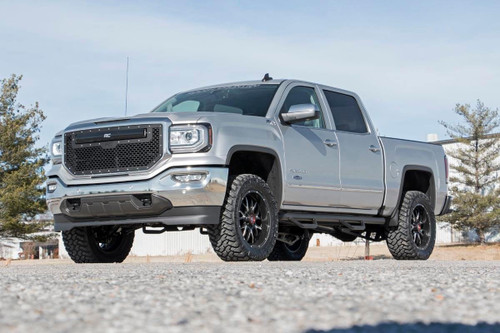

14-18 Chevy/GMC 1500 PU 3.5in Susp Lift Knuckle Kit Vertex Cast

Rough Country 12450 3.5 Inch Lift Kit

If you're looking for not-too-tall and not-too-small, Rough Country's 3.5 inch Lifted Knuckle kit is the perfect option for increased ground clearance and aggressive good looks! This all-inclusive kit features everything you need for a stunning, new appearance and enhanced off-road action, with a host of features designed to promote an incredible suspension geometry and ride quality!

Rough Country's 3.5-inch kit features a set of lifted knuckles allowing you to lift your vehicle in the best possible way. Other kits only replace your upper control arms which can leave your CV boot prone to damage by making contact with the lower arms. Rough Country's innovative, lifted knuckle design gives you plenty of clearance to keep your CV out of harm's way while promoting a better upper arm ball joint angle and better ride quality to boot.

This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. Also included in this kit are a set of fabricated rear blocks that are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. Includes a Lifetime Replacement Guarantee!

Features:

• 3.5 Inch GM Suspension Lift Knuckle Kit Vertex (14-18 1500 PU 4WD Cast Steel)
• Increased ground clearance.
• Increased CV axle boot clearance with the stamped steel lower control arm.
• Retains factory suspension components
• Levels front with rear
• Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
• Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Notes:

• Requires cutting and grinding
• If using factory wheels, a 0.25in wheel spacer is required. Part Number 1065
• Does Not work with aftermarket control arms
• Does Not fit GMC Denali models with Magnetic Ride Control.
• New lift block replaces the factory equipped block.
• If truck is equipped with a mass damper on the front differential, the damper must be removed.

Product Specifications:

• Manufacturer: Rough Country
• Model: 12450
• Lift Height: 3.5 inches
• Material: Cast Steel LCA
• Compatibility: Chevy/GMC 1500 (2014-2018)
• Shock Absorbers: V2 Monotube series
• Installation Time: 4-5 hours

Installation Details:

Front Components: Vertex adjustable coilovers, Lifted knuckles, Differential drop spacers, Differential skid plate, Hardware

Rear Components: 3in fabricated lift blocks, U-bolts, Hardware

Tire, Wheel, and Offset Information:

Various tire sizes and factory wheel specifications provided with corresponding spacer requirements for proper fitment.

Title: Rough Country 3.5 Inch Lift Kit - Cast Steel LCA - Vertex - Chevy/GMC 1500 (14-18)
