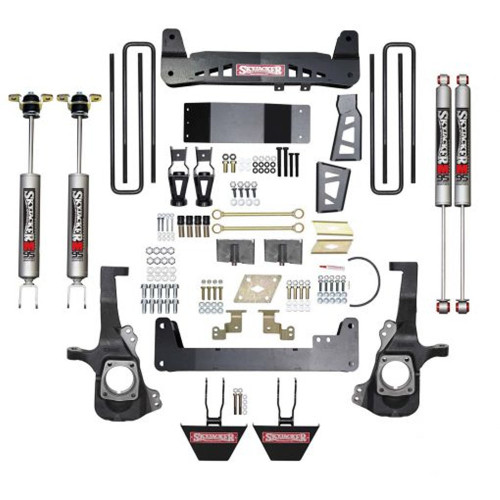

6in Susp Lft Kt Torsion Bar Drop Bracket And Blk MAX Shocks

Skyjacker has designed a dependable suspension that reinforces and strengthens your heavy-duty beauty's capabilities. Skyjacker’s configuration will unleashed exceptional performance with uncompromised strength. Increase ride height to run up to 35-inch tires.

Exacting engineered CNC machined ductile iron replacement steering knuckles preserve the OEM track width and maintain proper steering geometry through the travel cycle. Knuckles preserve CV extension and prevent CV axle overextension within the OEM tolerances. Aligns to OEM specifications and works properly with Electric Stability Control (ESC) system.

The pair of sturdy front and rear drop crossmembers provides a solid mounting point for the OEM lower control arms. A differential skid plate tie the two crossmembers together to add vital diff protection. Two separate differential relocation brackets reposition and correct front CV axles and driveshaft angles.

Skyjacker’s raised torsion bar brackets align and lock into each OEM lower control arm by aligning hex portion of bracket with hex torsion bar mount. This bracket design raises the front torsion bar mount up to parallel the OEM torsion bar crossmember mount. Raised torsion bar brackets delivers a clean look with exceptional high ground clearance.

This system integrates smoothly and functions perfectly with OEM suspension. This all-inclusive kit also has front bump stop brackets, front and rear brake line relocation brackets, differential vent tube extension, front sway bar links and sway bar lowering brackets, cast ductile iron rear blocks with longer Grade 8 U-bolts and lock nuts.

NOTES:

• Not Designed To Be Used With 17"-18" OEM Wheels.
• Not Designed To Fit Models With Magnetic Ride Control.
• Not Designed To Fit Dually Models.
• Not Designed To Fit Models With Top Mount Rear Over Load Leaf Springs.
• Models With Top Mount Rear Over Load Leaf Springs Must Order Rear U-Bolt Kit Part # UDB6R.
• Gas Models May Require Modification To OEM Exhaust For Driveshaft Clearance.
