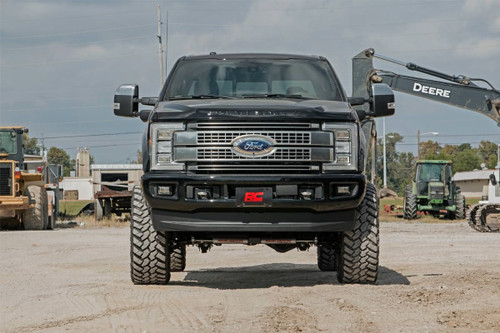

17-22 Ford SD M1 D/S 4-Link Diesel 6in Lift Kit

Rough Country 50741 6 Inch Lift Kit

Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country's 4-Link F-250 Lift Kit. This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country's durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.

This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country's Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride.

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem

Notes:

• Does NOT fit gas engine models
• Does NOT fit manual shift transfer cases
• Does NOT fit dually models
• Does NOT fit models with 3.5" rear axle tube
• Does NOT fit models equipped with rear factory contact overload springs
• New fabricated lift block replaces the factory equipped lift block
• Does NOT work on models equipped with Tremor Factory Trim Package

Install Time: 6-8 hours

Front Components:

• Lifted coil springs
• Fixed upper control arms
• Front Drive Shaft
• Adjustable lower control arms
• Radius arm drop brackets
• Sway-bar drop brackets
• Track bar drop bracket
• Stabilizer relocation brackets
• Pitman arm
• Stainless steel braided brake lines
• Brake line brackets
• Bumpstop spacers
• Hardware

Rear Components:

• Fabricated anti-wrap lift blocks
• Carrier bearing drop bracket
• Brake line brackets
• U-bolts
• Hardware

Tire, Wheel, and Offset Info:

• Various tire sizes with corresponding wheel sizes and offsets

Title: Rough Country 6 Inch Lift Kit - Diesel - 4-Link - D/S -M1 - Ford Super Duty (17-22)
