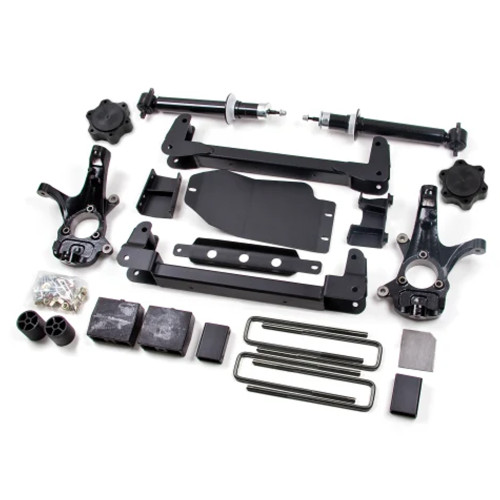

07-13 GM 1500 6.5 Inch Kit W/Shocks

This 6.5" system will give you an offroad worthy truck that you can still use as a daily driver. This system includes new coil over struts that reuse your factory coils and give added performance over a strut spacer system. The massive 1 piece main crossmembers are made from 1/4" thick steel and maintain a factory appearance. In addition to a heavy duty differential skid plate that locks the two crossmembers together an additional strut bar is included on the passenger side to ensure a solid sub-frame. No low hanging compression struts are necessary! The CNC machined ductile iron steering knuckles ensure proper steering geometry as well as reduce installation time compared to a drop bracket system. Combine all of these factors and you can lock in the the Zone 6.5" system as the best value out there! Your search has ended.

Note: Will not fit 2007 Classic models

This 6.5" system will give you an offroad worthy truck that you can still use as a daily driver. This system includes new coil over struts that reuse your factory coils and give added performance over a strut spacer system. The massive 1 piece main crossmembers are made from 1/4" thick steel and maintain a factory appearance. In addition to a heavy duty differential skid plate that locks the two crossmembers together an additional strut bar is included on the passenger side to ensure a solid sub-frame. No low hanging compression struts are necessary! The CNC machined ductile iron steering knuckles ensure proper steering geometry as well as reduce installation time compared to a drop bracket system. Combine all of these factors and you can lock in the the Zone 6.5" system as the best value out there! Your search has ended.

Features

• Ductile Iron, CNC machined steering knuckles maintain OE steering geometry
• New replacement coil over struts
• Heavy duty boxed one piece crossmembers
• Differential skid plate included for off-road protection
• Multi-point differential mounting system corrects drive line angles
• Rear block kit for easy installation
• Works with stabilitrak system

Notes

1. All wheel drive models require drive line modification
2. Will not fit 2007 Classic models
3. Strut compressor required for installation
4. Frame bracket modification and minor welding required
5. To reduce trimming required 20" wheels with 5-1/2 to 5-3/4" backspacing recommended
6. Add-a-leaf option recommended for crew cab models for a more level stance
7. Will not fit 2009-11 Two-Mode Hybrid models with Electronic Power Steering (EPS)

Quick Specs:

• Installation skill level: 4 of 5
• Estimated install time: 8 hrs
• Max tire size: 35 x 12.50
• Wheel size: 17x9, 18x9, 20x9
• Back spacing: Max: 5" w/17 or 18, 5.75" w/20's
