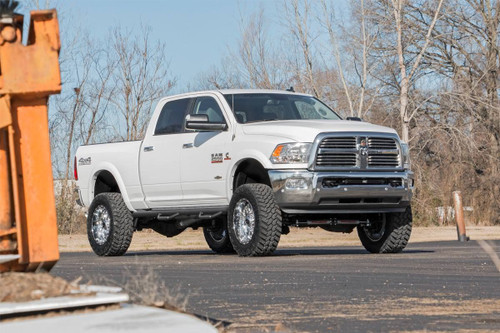

14-18 Dodge 2500 4WD R/A FR Diesel Coil 5in Lift Kit

Product Features:

• Increased ground clearance
• Track bar bracket keeps the front axle properly centered
• Fits both rear coil spring and rear air ride suspension models!
• Radius Arms offer a more factory-like angle and feature a durable, Clevite Rubber Bushing for maximum vibration absorption
• Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front - Air Ride models ONLY
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use

Notes:

• Does NOT fit "Power Wagon" models
• Does NOT fit gas engine models
• Requires drilling and cutting
• On vehicles equipped with a two-piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take-off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing

Installation Time:

6-8 hours

Front Components:

• Lifted Coil springs
• Radius arms
• Track bar bracket
• Sway-bar brackets
• Pitman arm
• Hardware

Rear Components:

• Rear lift spacers
• Track bar bracket
• Sway-bar links
• Bump stop brackets
• Ride height arms
• Hardware

Tire, Wheel, and Offset Info:

37x12.50R17:17x8.5:8x6.5/8x165.1:+0:-

37x12.50R17:17x8.5:8x6.5/8x165.1:+1:-

37x12.50R17:17x9:8x6.5/8x165.1:-12:-

37x12.50R17:17x9:8x6.5/8x165.1:+0:-

37x12.50R17:17x9:8x6.5/8x165.1:+1:-

37x12.50R18:18x8.5:8x6.5/8x165.1:+0:-

37x12.50R18:18x8.5:8x6.5/8x165.1:+1:-

37x12.50R18:18x9:8x6.5/8x165.1:-12:-

37x12.50R18:18x9:8x6.5/8x165.1:+0:-

37x12.50R18:18x9:8x6.5/8x165.1:+1:-

37x12.50R20:20x9:8x6.5/8x165.1:-12:-

37x12.50R20:20x9:8x6.5/8x165.1:+0:-

35x12.50R20:20x9:8x6.5/8x165.1:+0:-

37x12.50R20:20x9:8x6.5/8x165.1:+1:-

35x12.50R20:20x9:8x6.5/8x165.1:+1:-

37x12.50R20:20x10:8x6.5/8x165.1:-19:-

35x12.50R20:20x10:8x6.5/8x165.1:-19:-

37x12.50R20:20x10:8x6.5/8x165.1:-18:-

35x12.50R20:20x10:8x6.5/8x165.1:-18:-

35x12.50R20:20x12:8x6.5/8x165.1:-44:-

37x12.50R22:22x10:8x6.5/8x165.1:-19:-

35x12.50R22:22x10:8x6.5/8x165.1:-19:-

37x12.50R22:22x10:8x6.5/8x165.1:-18:-

35x12.50R22:22x12:8x6.5/8x165.1:-44:-

Title:

Rough Country 5 Inch Lift Kit - FR Diesel Coil - R/A - Ram 2500 4WD (2014-2018)
