Actual Product May Vary

Rough Country Suspension

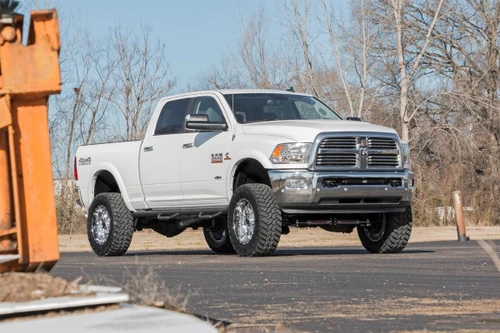

14-18 Dodge 2500 M1 Dual Rate Coils Diesel 5in Lift Kit

$1689.95
$1,639.95

Description

14-18 Dodge 2500 M1 Dual Rate Coils Diesel 5in Lift Kit Actual Product May Vary

Product Info

Rough Country 5 Inch Lift Kit - Diesel - Dual Rate Coils - M1 - Ram 2500 (14-18)

Compliment your RAM 2500's aggressive, good looks with Rough Country's new 5-inch Lift Kit with lifted coil springs. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!

Rough Country's 5-inch Lift Kit is designed for Dodge RAM's equipped with either factory rear coils or factory rear air ride suspension. On Air Ride models, this kit uses a rear air bag spacer that works with the factory air bag to provide rear lift. This kit also features a Rear Sensor Arm Relocation Bracket that can modify how the sensor link speaks to the computer to determine what the ride height is. This allows you to adjust the amount of rear height up to 1-inch higher than the front by way of multiple mounting points spaced by 1/4-inch. Pick the mounting point you want for the rear ride height you prefer.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram.

Features:

  • Increased ground clearance
  • Track bar bracket keeps the front axle properly centered
  • Fits both rear coil spring and rear air ride suspension models!
  • Radius Arms offer a more factory-like angle and feature a durable, Clevite Rubber Bushing for maximum vibration absorption
  • Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front - Air Ride models ONLY
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use

Notes:

  • Does NOT fit "Power Wagon" models
  • Does NOT fit gas engine models
  • Requires drilling and cutting
  • On vehicles equipped with a two-piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take-off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing

Installation Time:

6-8 hours

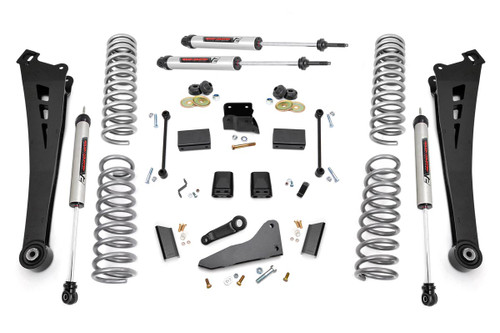

Front Components:

Lifted Dual Rate Coil springs, Radius arms, Track bar bracket, Sway-bar brackets, Pitman arm, Hardware

Install Time: 6-8 hours

Rear Components:

Lifted Dual Rate Coil springs, Track bar bracket, Sway-bar links, Bump stop brackets, Ride height arms, Hardware

Tire, Wheel, and Offset Info:

Various tire sizes with corresponding wheel sizes and offsets for compatibility

Specs

  • SKU: HEC 36840
  • UPC: 840269917387
  • Weight: 123.45 LBS
  • Product Sub Category: Lift Kits
  • Data Fitment Make: Dodge
  • Data Fitment Model: 2500
  • Data Fitment Year: 2014, 2015, 2016, 2017, 2018
  • Data Default Qt: 1
  • Data Product Type: Mom Class Bolt-on
  • Data Shipping Group: HEC shipping

Fitment

Make Model Sub-model Years
Ram2500Big Horn2014,2015,2016,2017,2018
Ram2500Laramie2014,2015,2016,2017,2018
Ram2500Laramie Limited2014,2015
Ram2500Laramie Longhorn2014,2015,2016,2017,2018
Ram2500Limited2016,2017,2018
Ram2500Lone Star2014,2015
Ram2500Outdoorsman2014,2015,2016
Ram2500SLT2014,2015,2016,2017,2018
Ram2500Tradesman2014,2015,2016,2017,2018
