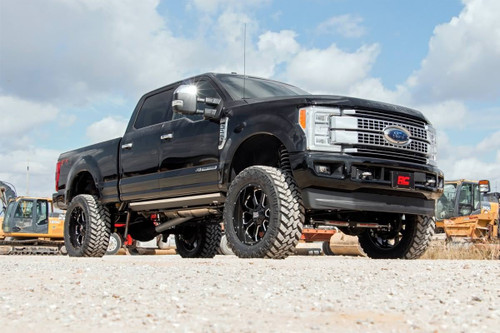

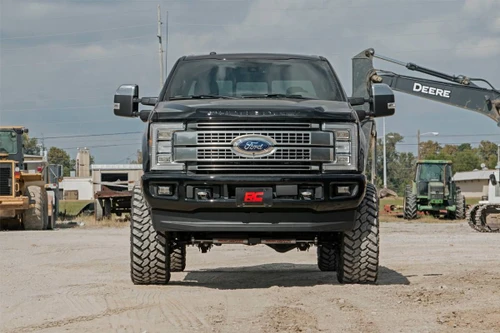

17-22 Ford SD 4WD M1 NO OVLDS 6in Lift Kit 51340

Rough Country 51340 6 Inch Lift Kit

Take your truck to new heights with Rough Country's 6in Suspension Lift! This all-inclusive kit comes with everything you need for a total transformation of your truck. Run up to 37in tires while preserving the smooth, factory ride quality with this impressive upgrade.

When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Suspension Lift features a set of ultra-durable radius arms drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.

This kit includes a set of lifted coil springs and ultra-durable, fabricated anti-wrap rear blocks that prevent binding and axle wrap. Best of all, this kit comes with your choice of Rough Country's N3, V2 Monotube, or Vertex Adjustable Reservoir shocks!

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems

Notes:

• Does NOT fit gas engine models
• Does NOT fit dually models
• Does NOT fit manual shift transfer cases
• Does NOT fit models with 3.5" rear axle tube
• Does NOT fit models equipped with rear factory contact overload springs
• Does NOT work on models equipped with Tremor Factory Trim Package

Install Time: 4-6 hours

Front Components: Lifted coil springs, Radius arm drop brackets, Clocking ring kit, Sway-bar links, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Brake line brackets, Bumpstop spacers, Hardware

Rear Components: Fabricated lift blocks, Brake line brackets, U-bolts, Hardware

Tire, Wheel, and Offset Info:

37x12.50R17:17x9:8x170:-12:-; 37x12.50R17:17x9:8x170:+0:-; 37x12.50R17:17x9:8x170:+1:-; 37x12.50R18:18x9:8x170:-12:-; 37x12.50R18:18x9:8x170:+0:-; 37x12.50R18:18x9:8x170:+1:-; 37x12.50R20:20x9:8x170:-12:-; 37x12.50R20:20x9:8x170:+0:-; 37x12.50R20:20x9:8x170:+1:-; 37x12.50R20:20x10:8x170:-25:-; 37x12.50R20:20x10:8x170:-24:-; 37x12.50R20:20x10:8x170:-19:-; 35x12.50R20:20x10:8x170:-19:-; 37x12.50R20:20x10:8x170:-18:-; 35x12.50R20:20x10:8x170:-18:-; 37x12.50R20:20x12:8x170:-44:Trimming Required; 35x12.50R20:20x12:8x170:-44:Trimming Required; 37x12.50R22:22x9:8x170:-12:-; 37x12.50R22:22x9:8x170:+0:-; 37x12.50R22:22x9:8x170:+1:-; 37x12.50R22:22x10:8x170:-25:-; 37x12.50R22:22x10:8x170:-24:-; 37x12.50R22:22x10:8x170:-19:-; 35x12.50R22:22x10:8x170:-19:-; 35x12.50R22:22x12:8x170:-44:Trimming Required;

Title: Rough Country 6 Inch Lift Kit - No OVLDS - M1 - Ford Super Duty 4WD (2017-2022)
