17-22 Ford SD 4WD M1 Shocks OVLD 6in Lift Kit

Rough Country 4.5 Inch Lift Kit - M1 - Ford Super Duty 4WD (2017-2022)

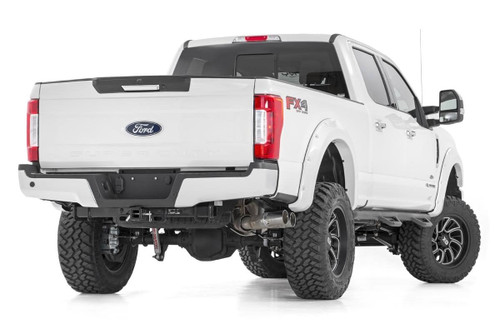

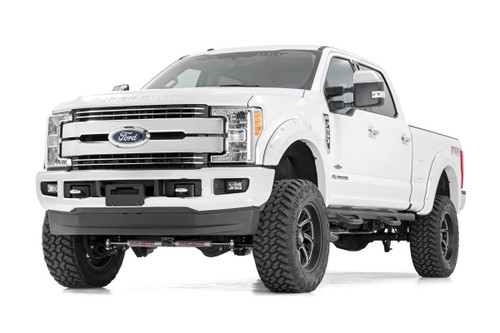

Give your 17-20 Ford Super Duty an impressive upgrade, front to back with Rough Country's 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks

This kit features a set of front, lifted coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting. A set of Rough Country's premium N3 shocks are also included. These fine-tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 4.5" 17-20 Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing. Best of all, Rough Country's 4.5" Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty!

Notes:

• Does NOT fit F-350 models
• Does NOT fit gas engine models
• Does NOT fit manual shift transfer cases
• Does NOT fit dually models
• Does NOT fit models with 4" rear axle tube
• Does NOT work on models equipped with Tremor Factory Trim Package
• Does NOT fit 2020 models with 10-speed transmission

Install Time:

4-6 hours

Front Components:

• Lifted coil springs
• Radius arm drop brackets
• Clocking Ring kit
• Sway-bar links
• Track bar drop bracket
• Stabilizer relocation brackets
• Pitman arm
• Brake line brackets
• Bumpstop spacers
• Hardware

Rear Components:

• Fabricated lift blocks
• Brake line brackets
• U-bolts
• Hardware

Tire, Wheel, and Offset Info:

35x12.50R17:17x9:8x170:-12:-

35x12.50R18:18x9:8x170:-12:-

35x12.50R18:18x10:8x170:-25:-

35x12.50R18:18x10:8x170:-24:-

35x12.50R18:18x10:8x170:-19:-

35x12.50R18:18x10:8x170:-18:-

35x12.50R20:20x9:8x170:-12:-

35x12.50R20:20x10:8x170:-25:-

35x12.50R20:20x10:8x170:-24:-

35x12.50R20:20x10:8x170:-19:-

295/60R20:20x10:8x170:-19:-

35x12.50R20:20x10:8x170:-18:-

295/60R20:20x10:8x170:-18:-

35x12.50R20:20x12:8x170:-44:Minor Trimming

35x12.50R22:22x10:8x170:-25:-

35x12.50R22:22x10:8x170:-24:-

35x12.50R22:22x10:8x170:-19:-

35x12.50R22:22x10:8x170:-18:-

35x12.50R22:22x12:8x170:-44:Minor Trimming
