17-22 Ford SD Diesel 4-Link 6in Coilover Lift Kit C/O Vertex 4in Axle

Product Description:

Upgrade your fourth-generation Ford Super Duty with the Rough Country's 4-Link Coilover Conversion Lift Kit. This kit is designed to provide superior ride quality, ride height adjustability, increased dampening, and an impressive look. It features a 4-Link setup, using Rough Country's durable, fixed upper arms and adjustable lower control arms. The kit also includes radius arm drop brackets for maintaining proper geometry and caster setting, crucial for maintaining factory handling.

Key Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems

Durable Components:

The 6" 4-Link Coilover Conversion Lift Kit features top-mounted reservoir brackets and coil-over mounts constructed from 1/4-inch steel. It replaces the factory independent coil shock and coil set-up with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover. The Vertex Coilovers feature a monotube design with an external reservoir for increased oil capacity and damping sensitivity. The 2.5in piston design offers an impressive 56% greater fluid capacity than the average reservoir shock.

Installation:

The kit requires cutting and drilling for installation, with an estimated timeframe of 6-10 hours. It can be installed at home efficiently and quickly.

Warranty:

Rough Country's 4-Link Coilover Conversion Lift Kit comes with a limited lifetime replacement warranty against manufacturer defects, providing peace of mind for your investment.

Notes:

This kit does not fit gas engine models, manual shift transfer cases, dually models, or models equipped with the Tremor Factory Trim Package. Models equipped with a 10-speed transmission must remove the dial pin. The new fabricated lift block replaces the factory equipped lift block.

Manufacturer:

The manufacturer of the product is Rough Country, and the product model is 50757 6 Inch Lift Kit.

Additional Information:

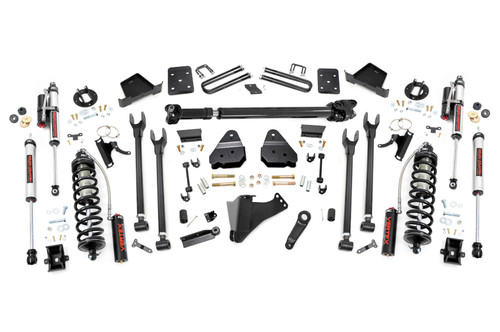

The kit includes front components like Vertex Coilovers, Fixed Upper Control Arms, Adjustable Lower Control Arms, Radius Arm Drop Brackets, Sway-Bar Drop Brackets, Track Bar Drop Bracket, Stabilizer Relocation Brackets, Pitman Arm, Brake Line Brackets, Bumpstop Spacers, and Hardware. The rear components include Fabricated Anti-Wrap Lift Blocks, Carrier Bearing Drop Bracket, Brake Line Brackets, U-Bolts, and Hardware.

Tire, Wheel, and Offset Info:

Various combinations of tire, wheel, and offset are compatible with this kit, with some requiring minor trimming. Please refer to the manufacturer's guide for specific combinations.

Title:

Rough Country 6 Inch Lift Kit - Diesel - 4-Link - C/O Vertex - Ford Super Duty (17-22)
