17-22 Ford SD 4-Link 6in Coilover Conv Lift Kit No OVLD C/O Vertex 3.5in Axle

Superior Ride Quality: Upgrade your fourth-generation Ford Super Duty with Rough Country's 4-Link Coilover Conversion Lift Kit for an impressive ride quality. This kit offers ride height adjustability, increased dampening, and a unique appearance that sets you apart from the rest. The innovative design replaces factory arms with a 4-Link setup, featuring durable fixed upper arms and adjustable lower control arms. Radius arm drop brackets maintain proper geometry and caster setting for factory handling.

Durable Components: The 6" 4-Link Coilover Conversion Lift Kit from Rough Country includes top-mounted reservoir brackets and coil-over mounts made from 1/4-inch steel. The kit replaces the factory coil shock with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover. The Vertex Coilovers feature a monotube design with an external reservoir for increased oil capacity and damping sensitivity. The 2.5in piston design offers 56% greater fluid capacity than average reservoir shocks, providing optimal damping control.

Installation: This kit requires cutting and drilling for installation, with an estimated timeframe of 6-10 hours. The installation can be done at home efficiently and quickly.

Limited Lifetime Replacement Warranty: Rough Country's 4-Link Coilover Conversion Lift Kit is backed by a limited lifetime replacement warranty against manufacturer defects, ensuring protection from structural and workmanship damage post-purchase. Enjoy peace of mind with Rough Country's Suspension products!

Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets for proper caster setting
• Fabricated blocks for strength and longevity
• Anti-axle wrap rear blocks for stock ride quality

Notes:

• Models with a 10-speed transmission must remove dial pin
• Does NOT fit gas engine models
• Does NOT fit manual shift transfer cases
• Does NOT fit dually models
• Does NOT work on models with Tremor Factory Trim Package

Install Time: 6-10 hours

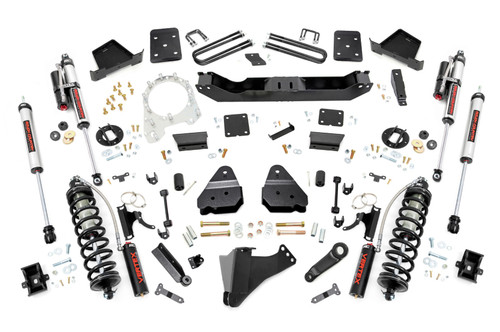

Front Components:

Vertex Coilovers, Fixed Upper Control Arms, Adjustable Lower Control Arms, Radius Arm Drop Brackets, Sway-Bar Drop Brackets, Track Bar Drop Bracket, Stabilizer Relocation Brackets, Pitman Arm, Brake Line Brackets, Bumpstop Spacers, Hardware

Rear Components:

Fabricated Anti-Wrap Lift Blocks, Carrier Bearing Drop Bracket, Brake Line Brackets, U-Bolts, Hardware

Tire, Wheel, and Offset Info:

Various tire sizes with corresponding wheel sizes and offsets are compatible with this lift kit. Minor trimming may be required for certain combinations.

Title:

Rough Country 6 Inch Lift Kit - 4-Link - No OVLD - C/O Vertex - Ford Super Duty (17-22)
