Tacoma Wheel Specs at a Glance

Every 4WD and PreRunner Tacoma from 1995 to 2026 uses a 6×5.5 (6×139.7) bolt pattern with a large 106.1 mm hub bore. The lug thread changed with the 4th generation: 2005-2023 trucks are M12×1.5, 2024+ trucks are M14×1.5, so lug nuts come with the wheels. 1995-2004 2WD (non-PreRunner) trucks are 5×4.5 and are the only exception.

Bolt pattern	6×5.5 (4WD & PreRunner, 1995-2026)
Hub bore	106.1 mm - most aftermarket wheels are 106.1 hub-centric
Lug thread	M14×1.5 (2024+) · M12×1.5 (1995-2023)
Factory offset	Roughly +25 to +30 mm on 16-18" wheels
Factory tire sizes	245/75R16 · 265/70R16 · 265/65R17 · 4th gen 265/70R18 · TRD Pro / Trailhunter 33"

How Big Can You Go?

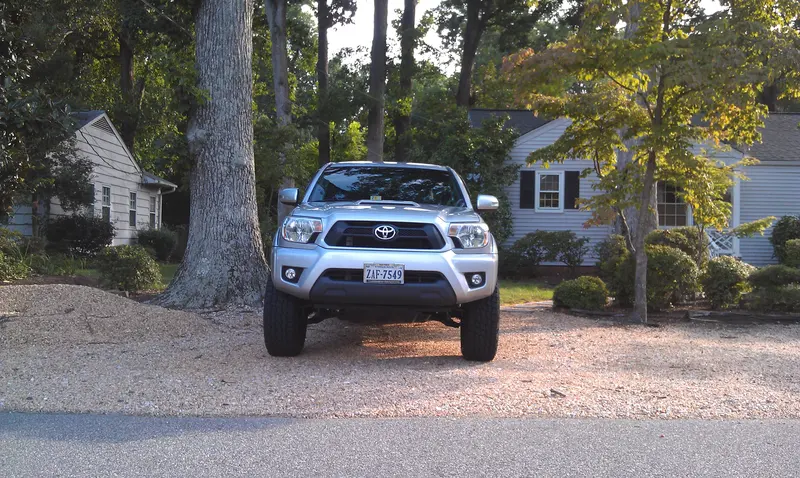

• Stock height (2nd/3rd gen): a 265/75R16 or 265/70R17 (31.6") is the easy upgrade. A 285/75R16 or 285/70R17 (32.7") fits with a 16x8 or 17x8.5 at 0 to +10 offset and light rubbing on the front mud flap and liner at full lock.

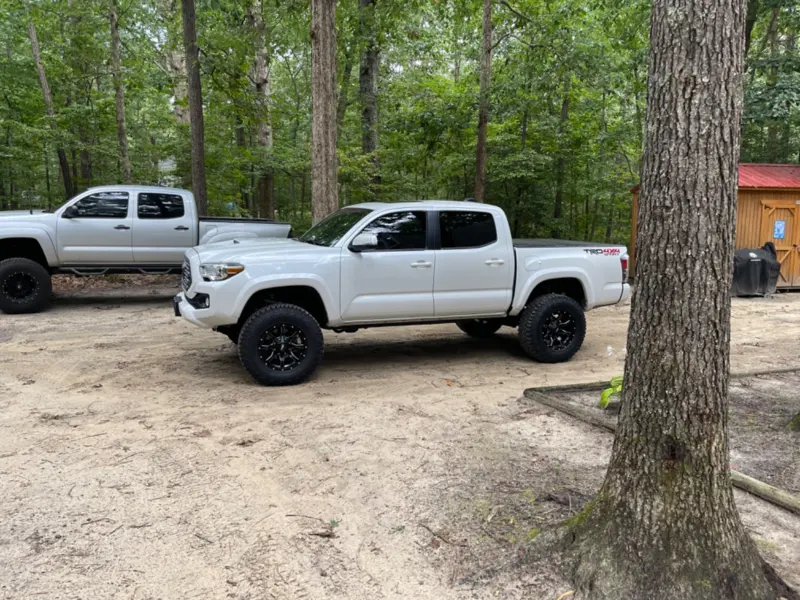

• 2-3" lift: the sweet spot for 33s (285/75R16, 285/70R17, 33x10.50R17). With a 0 to -6 offset wheel the tire will touch the cab mount at full lock; a cab-mount chop (CMC) or relocation bracket clears it for good.
• 3"+ lift with CMC: 35x12.50R17s fit with the cab mount cut, trimmed fender liners and pinch weld, and a wheel around -12 offset. Expect a regear.

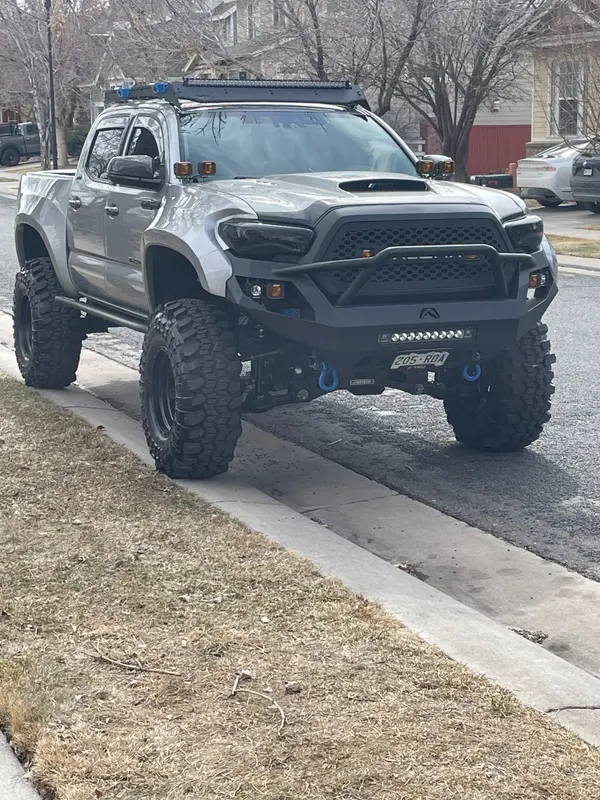

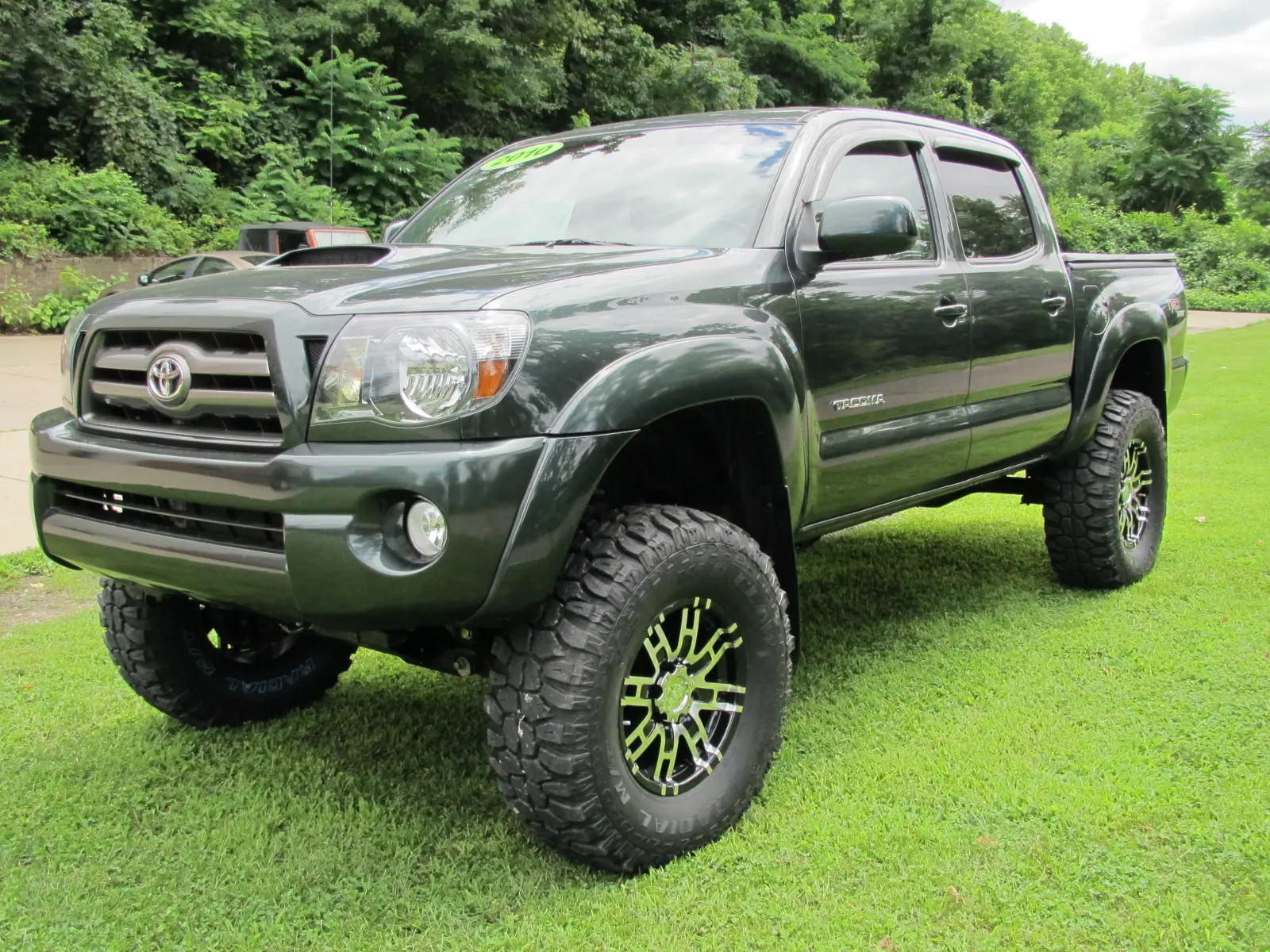

• 6" lift: 35s clear without body work, and 37x12.50s fit with trimming - the 6" Rough Country and Fabtech builds in our customer gallery are on this combination.
• 4th gen (2024+): TRD Pro and Trailhunter already run 33s on 18s. Other trims fit 33s stock with a 0 to +10 offset wheel; 35s need a 2-3" lift and liner trimming.

Wheel width and offset move the tire more than diameter on a Tacoma. A 17x8.5 at 0 offset (4.75" backspacing) is the standard 33" setup; going to 17x9 -12 pokes the tire out past the flare and into the cab mount sooner.

Gearing on 33s and 35s

Tacomas come with 3.73, 3.909, or 4.10 gears depending on year and engine. A 33 on any of them is fine for daily driving. 35s on stock gears turn the V6 and the 6-speed automatic into a downshift machine - most owners regear to 4.88 (or 5.29 on 2.7L four-cylinders) when they go to 35. Recalibrate the speedometer for the new diameter either way.

All-Terrain vs. Mud-Terrain on a Tacoma

• All-Terrain (A/T): the right call for an overland or daily-driven truck - quiet, long-wearing, and light enough not to kill the V6. Toyo Open Country A/T III and Nitto Ridge Grappler are the top sellers here.

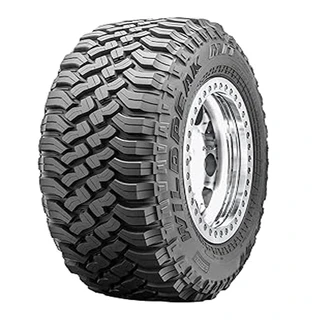

• Mud-Terrain (M/T): maximum traction for trail rigs, louder on the highway and faster wearing. Nitto Trail Grappler and BFGoodrich KM3 lead this category.

Weight matters more on a mid-size truck than a full-size. A load range C 33 can be 10 lb per tire lighter than an E - noticeably better for acceleration, braking, and fuel economy on a Tacoma that does not tow heavy. Every tire on this page lists its load range and weight.

Why Buy the Package Instead of Separately?

Buying wheels and tires together means we check the whole combination - bolt pattern, hub bore, offset, diameter, and load rating - against your year, trim, and lift before anything ships. We mount and balance the set for free, install TPMS sensors if you add them, and ship the four assembled wheels free to your door. Bolt them on, torque the lugs to 83 ft-lb (M12) or as specified, and drive. No shop appointment, no $150-250 mounting bill.
