08-10 Ford Super Duty 4WD 6 Inch Lift Kit Gas 4 Link V2

Product Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability
• Includes application valved V2 series shock absorbers which offer the best in balanced performance for on and off-road use

Notes:

• Does NOT fit dually models
• If vehicle is equipped with rear overload leafs, they will need to be removed
• Gas models may require exhaust modification to clear front drive shaft

Installation Time:

6-8 hours

Manufacturer:

Rough Country

Product Name:

Rough Country 58870 6 Inch Lift Kit

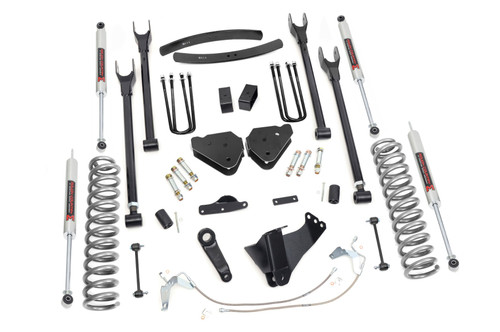

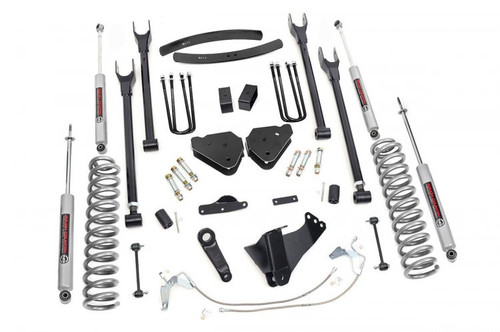

Front Components:

• Lifted coil springs
• Fixed upper control arms
• Adjustable lower control arms
• Radius arm drop brackets
• Extended sway-bar links
• Track bar drop bracket
• Stabilizer relocation brackets
• Pitman arm
• Stainless steel braided brake lines
• Bumpstop spacers
• Hardware

Rear Components:

• 3in lift blocks
• Add-a-leafs
• Carrier bearing drop bracket
• U-bolts
• Hardware

Tire, Wheel, and Offset Info:

37x13.50R17:17x9:8x170:-12:-

37x13.50R17:17x9:8x170:+0:-

37x13.50R17:17x9:8x170:+1:-

37x13.50R18:18x9:8x170:-12:-

37x13.50R18:18x9:8x170:+0:-

37x13.50R18:18x9:8x170:+1:-

37x13.50R20:20x9:8x170:-12:-

37x13.50R20:20x9:8x170:+0:-

37x13.50R20:20x9:8x170:+1:-

37x12.50R20:20x10:8x170:-25:-

37x12.50R20:20x10:8x170:-24:-

37x12.50R20:20x10:8x170:-19:-

37x12.50R20:20x10:8x170:-18:-

37x12.50R20:20x12:8x170:-44:Trimming Required

37x12.50R22:22x10:8x170:-25:-

37x12.50R22:22x10:8x170:-24:-

37x12.50R22:22x10:8x170:-19:-

37x12.50R22:22x10:8x170:-18:-

37x12.50R22:22x12:8x170:-44:Trimming Required

Title:

Rough Country 6 Inch Lift Kit - Gas - 4 Link - V2 - Ford Super Duty 4WD (08-10)
