08-10 Ford SD 6in Lift Kit Diesel 4 Link C/O Vertex -

Superior Ride Quality. Upgrade your second-generation Ford Super Duty with Rough Country's 4-Link Coilover Conversion Lift Kit for an impressive ride quality. This kit offers ride height adjustability, increased dampening, and a unique appearance that will make you stand out. The innovative design allows you to replace your factory arms with a 4-Link setup, using durable fixed upper arms and adjustable lower control arms. Radius arm drop brackets maintain proper geometry and caster setting for factory handling.

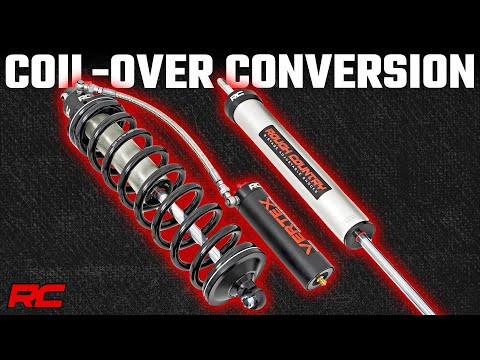

Durable Components. The 6" 4-Link Coilover Conversion Lift Kit features top-mounted reservoir brackets and coil-over mounts made from 1/4-inch steel. It replaces the factory independent coil shock with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover. The Vertex Coilovers feature a monotube design with an external reservoir for increased oil capacity and damping sensitivity. The 2.5in piston design offers 56% greater fluid capacity than average reservoir shocks, providing optimal damping control.

Installation. This kit requires cutting and drilling for installation, with an estimated timeframe of 6-10 hours. It can be installed at home efficiently and quickly.

Limited Lifetime Replacement Warranty. Backed by a limited lifetime replacement warranty against manufacturer defects, Rough Country's 4-Link Coilover Conversion Lift Kit is protected from structural and workmanship damage. Enjoy peace of mind with Rough Country's industry-leading warranty on Suspension products!

Features:

• Easy bolt-on installation
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability

Notes:

• Does NOT fit dually models
• If vehicle has rear overload leafs, they need to be removed
• Gas models may require exhaust modification to clear the front drive shaft

Install Time:

6 - 10 hours

Front Components:

• Vertex Coilovers
• Fixed Upper Control Arms
• Adjustable Lower Control Arms
• Radius Arm Drop Brackets
• Sway-Bar Drop Brackets
• Track Bar Drop Bracket
• Stabilizer Relocation Brackets
• Pitman Arm
• Brake Line Brackets
• Bumpstop Spacers
• Hardware

Rear Components:

• Lift Blocks
• Add-A-Leafs
• Carrier Bearing Drop Bracket
• U-bolts
• Hardware

Tire, Wheel, and Offset Info:

• 37x13.50R17:17x9:8x170:-12:-
• 37x13.50R17:17x9:8x170:+0:-
• 37x13.50R17:17x9:8x170:+1:-
• 37x13.50R18:18x9:8x170:-12:-
• 37x13.50R18:18x9:8x170:+0:-
• 37x13.50R18:18x9:8x170:+1:-
• 37x13.50R20:20x9:8x170:-12:-
• 37x13.50R20:20x9:8x170:+0:-
• 37x13.50R20:20x9:8x170:+1:-
• 37x12.50R20:20x10:8x170:-25:-
• 37x12.50R20:20x10:8x170:-24:-
• 37x12.50R20:20x10:8x170:-19:-
• 37x12.50R20:20x10:8x170:-18:-
• 37x12.50R20:20x12:8x170:-44:Trimming Required
• 37x12.50R22:22x10:8x170:-25:-
• 37x12.50R22:22x10:8x170:-24:-
• 37x12.50R22:22x10:8x170:-19:-
• 37x12.50R22:22x10:8x170:-18:-
• 37x12.50R22:22x12:8x170:-44:Trimming Required

Title:

Rough Country 6 Inch Lift Kit - Diesel - 4 Link - C/O Vertex - Ford Super Duty (08-10)
