17-22 Ford SD 4WD M1 3in Lift Kit

Give your 17-20 Ford Super Duty an impressive upgrade, front to back with Rough Country's 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

This kit features a set of front, lifted coil springs spacers allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket are provided to keep everything at optimum angles for a factory-like ride, even after lifting.

A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.

Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Lifetime Replacement Warranty.

Features

• Easy bolt-on installation
• Maintains factory ride quality
• Increased ground clearance
• Levels the front with the rear of the vehicle
• Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.

Notes

• Does NOT fit F-350 models
• Does NOT fit dually models
• Does NOT fit 4" rear axle tubes
• Does NOT work on models equipped with Tremor Factory Trim Package
• If equipped with factory top mount overload spring it will need to be removed

Install Time

3-4 hours

Additional Information

Manufacturer: Rough Country

Product Name: 3 Inch Lift Kit - M1 - Ford Super Duty 4WD (2017-2022)

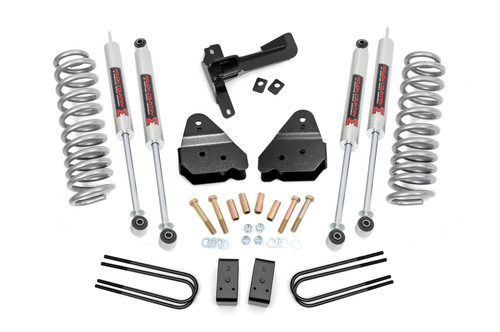

Front Components: Coil spring spacers, Radius arm drop brackets, Track bar drop bracket, Hardware

Rear Components: 4in lift blocks, U-bolts, Hardware

Tire, Wheel, and Offset Info:

• 35x12.50R20: Factory 20: 8x170: -:-
• 35x12.50R18: Factory 18: 8x170: -:-
• 35x12.50R17: Factory 17: 8x170: -:-
• Various other tire sizes with corresponding wheel and offset information for minor trimming

Title

Rough Country 3 Inch Lift Kit - M1 - Ford Super Duty 4WD (2017-2022)
