Product Info

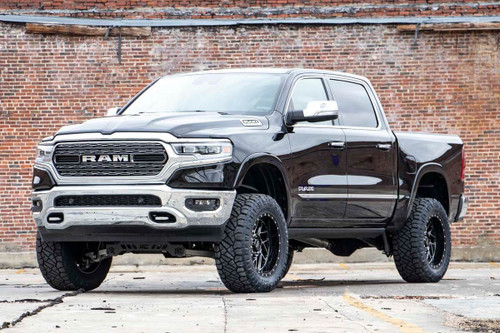

Transform your 5th generation RAM 1500 into an absolute BEAST with Rough Country's 5in Suspension Lift Kit for Air-Ride Models. This all-inclusive kit comes with everything you need to give your truck an aggressive look and a formidable stance that complements the revamped design and upgraded look of this rugged vehicle.
Rough Country's 5in Suspension Lift gives you plenty of increased ground clearance for off-road action and enough additional ride height to run up to 35in tires for a head-turning look that's sure to command attention.
Each kit features a set of high-quality front and rear crossmembers with a laser-cut RC logo, giving the truck a fierce, but streamlined look after lifting. For true trailblazers, this kit also ships with a set of rear N3 Nitrogen-charged shock absorbers - valved specifically for a blend of on and off-road performance.
This kit also includes an upgraded outer tie-rod that's engineered to optimize turning and minimize bump steer while allowing you to fit a wider variety of wheels. Best of all? You'll achieve better performance, bigger tires, and considerable protection all without sacrificing the look of your truck.
All components are specifically designed to keep things nice and tidy underneath, utilizing drop brackets to promote proper geometry and leaving nothing hanging out in plain sight. Includes Rough Country's Lifetime Replacement Guarantee.
Features:
- Increased ground clearance
- Leves front of vehicle with rear
- Maintains factory air ride modes
Notes: Only fits models with factory air ride suspension. Does Not fit models w/ heavy duty bearing package for available factory 22in wheels Does Not fit 2019 Classic models (5-lug) Kit is Not recommended for AWD models. TRX models will achieve approximately 1 inch of additional lift. Requires 20 Inch or larger wheels! Does Not fit 18 inch or smaller wheels.
Details:
- Sold As Kit
- Drive 4WD
- Max Tire 35.0 inch
- Lift Height 5.0 inch
- Mount Style Bolt On

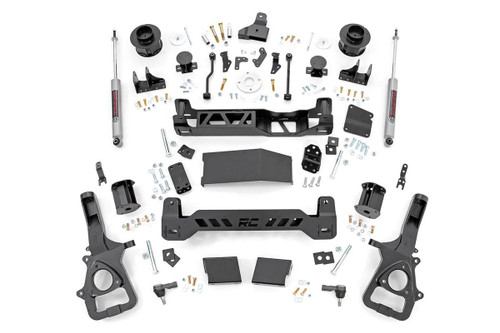

- Front Components: Lifted knuckles, Strut spacers, Front crossmember, Differential drop brackets, Driveshaft spacer, Sway-bar links, Skid plate, Hardware
- Rear Components: Coil spacers, Rear crossmember, Sway-bar links, Track bar bracket, Bump-stop extensions, Brake line brackets, Brake lines, Hardware
The Manufacture or Brand name of the product is: Rough Country 33830A 5 Inch Lift Kit
Features: Increased ground clearance, Leves front of vehicle with rear, Maintains factory air ride modes
Install Time: 7 - 8 hours
Notes: Front Components: Lifted knuckles, Strut spacers, Front crossmember, Differential drop brackets, Driveshaft spacer, Sway-bar links, Skid plate, Hardware; Rear Components: Coil spacers, Rear crossmember, Sway-bar links, Track bar bracket, Bump-stop extensions, Brake line brackets, Brake lines, Hardware; Tire, Wheel, and Offset Info: 35x12.50R20:20x9:6x5.5:-12:-; 295/60R20:20x9:6x5.5:-12:-; 35x12.50R20:20x9:6x5.5:+0:; 295/60R20:20x9:6x5.5:+0:-; 35x12.50R20:20x9:6x5.5:+1:; 295/60R20:20x9:6x5.5:+1:-; 35x12.50R20:20x9:6x5.5:+12:; 35x12.50R20:20x10:6x5.5:-25:Minor Trimming; 295/60R20:20x10:6x5.5:-25:-; 35x12.50R20:20x10:6x5.5:-24:Minor Trimming; 295/60R20:20x10:6x5.5:-24:-; 35x12.50R20:20x10:6x5.5:-19:Minor Trimming; 295/60R20:20x10:6x5.5:-19:-; 35x12.50R20:20x10:6x5.5:-18:Minor Trimming; 295/60R20:20x10:6x5.5:-18:-; 35x12.50R22:22x9:6x5.5:+0:; 35x12.50R22:22x9:6x5.5:+1:; 35x12.50R22:22x9:6x5.5:+12:; 35x12.50R22:22x10:6x5.5:-25:Minor Trimming; 35x12.50R22:22x10:6x5.5:-24:Minor Trimming; 35x12.50R22:22x10:6x5.5:-19:Minor Trimming; 35x12.50R22:22x10:6x5.5:-18:Minor Trimming; Title: Rough Country 5 Inch Lift Kit - Air Ride - Ram 1500 4WD (2019-2023)
Specs
- SKU: HEC 33830A
- UPC: 843030190002
- Product Sub Category: Lift Kits
- Kit Height: 5
- Data Fitment Make: Ram (09-Current)
- Data Fitment Model: Ram 1500
- Data Fitment Year: 2019, 2020, 2021, 2022, 2023
- Data Product Type: Mom Class Bolt-on
- Data Default Qt: 1
- Data Product Badges: free_shipping
- Data Shipping Group: HEC shipping
Fitment
Make | Model | Sub-model | Years |
---|---|---|---|
Ram | 1500 | Big Horn | 2019,2020,2021,2022,2023,2024 |
Ram | 1500 | HFE | 2022,2023,2024 |
Ram | 1500 | Laramie | 2019,2020,2021,2022,2023,2024 |
Ram | 1500 | Laramie Longhorn | 2019,2020,2021,2021 |
Ram | 1500 | Limited | 2019,2020,2021,2022,2023,2024 |
Ram | 1500 | Limited Longhorn | 2022,2023,2024 |
Ram | 1500 | Lone Star | 2019,2020,2021,2022,2023,2024 |
Ram | 1500 | Longhorn | 2021 |
Ram | 1500 | Rebel | 2019,2020,2021,2022,2023,2024 |
Ram | 1500 | Tradesman | 2019,2020,2021,2022,2023,2024 |
Notes: | ONLY fits models with factory air ride suspension. Does NOT fit models w/ heavy duty bearing package for available factory 22in wheels Does NOT fit 2019 "classic" models (5-lug) Kit is not recommended for AWD models. "TRX" models will achieve approximately 1" of additional lift. Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels. Does NOT fit factory wheels. |
