11-19 Chevy/GMC 2500HD/3500HD 5in NTD Suspension Lift Kit Vertex

Product Features:

• Maintains factory ride quality
• Maintains the stock track width
• Torsion bars stay in the factory location
• Unmatched ground clearance
• Axles maintain factory position and angle
• No drilling or modifying of the differential
• No drivetrain or exhaust modifications required
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use

Notes:

• Requires minor cutting and drilling
• Does Not fit dually models
• Does Not fit models with Magnetic Ride Control
• Gas models may require modification to the exhaust for driveshaft clearance
• Factory rear overload springs will need to be removed on equipped models
• Does Not work with factory wheels
• Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers/rotor

Manufacturer: Rough Country

Product Name: 5 Inch Lift Kit - NTD - Vertex - Chevy/GMC 2500HD/3500HD (11-19)

Installation Time: 8 - 10 hours

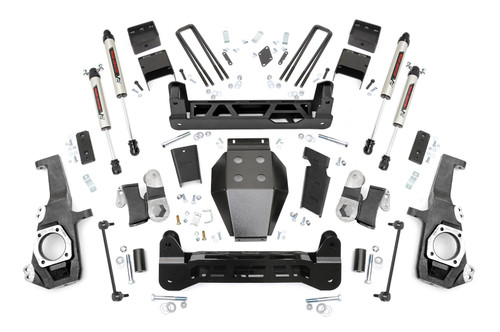

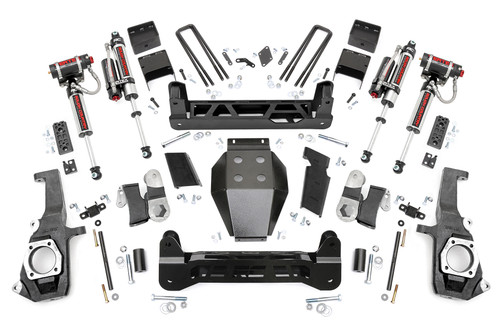

Installation Components:

Front Components:

• Lifted knuckles
• Front crossmember
• Rear crossmember
• Differential drop brackets
• Differential skid plate
• Non-torsion bar drop brackets
• Sway-bar link extensions
• Sway-bar brackets
• Upper shock brackets
• Brake line relocation brackets
• Hardware

Rear Components:

• Lifted blocks
• U-bolts
• Bump-stop brackets
• Brake line brackets
• E-brake line bracket
• Hardware

Tire, Wheel, and Offset Information:

Various tire sizes with corresponding wheel sizes and offsets are provided for compatibility with the lift kit.
